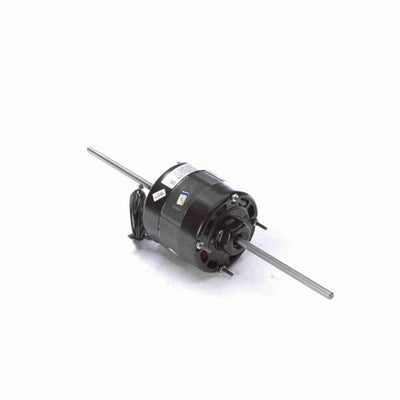

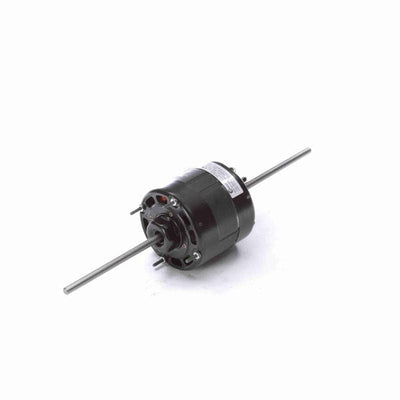

Century OEM Replacement Motor, 1550 RPM, 1/12 HP, 115 V, 4.4" Diameter, Open Air Over

Availability:
In-Stock
  • Fan Coil Motor
  • Shaded Pole
  • Sleeve Bearing
  • 3/8" Diameter Double Shaft with Flat
  • 36" Leads
  • Extended Studs Opposite Lead End, Resilient Ring Mounting
  • HM102-0033 replaces the following brands and item numbers: Trane, Dunham-Bush, American Standard, Nesbitt, York, Fedders, Carrieer, U.S. Air and other fan coil unit applications

$172.00 USD

Title
Buy Now
SKU:
53
ID:
HM102-0033

SPECIFICATIONS

Nameplate Specifications
UPC786674006011
Output HP1/12 Hp
Frequency60 Hz
Current2.6 A
Service Factor1
DutyContinuous Air Over
Frame4.4
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1550 rpm
Phase1
Insulation Class
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Shaft Extension6 1/4 X 3/8 X 6 1/4 in
RotationClockwise Lead End
Frame MaterialRolled Steel
Overall Length
16.38 in
Shaft Diameter0.375 in
