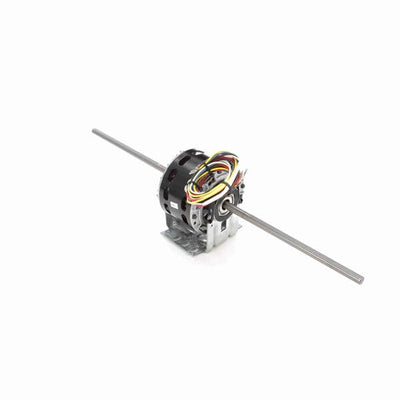

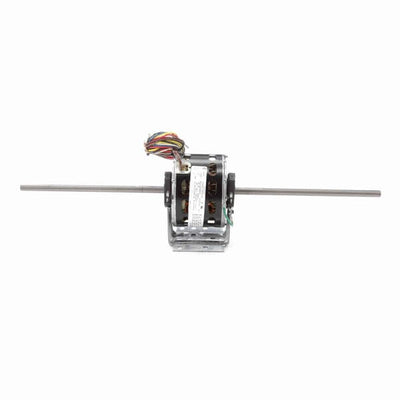

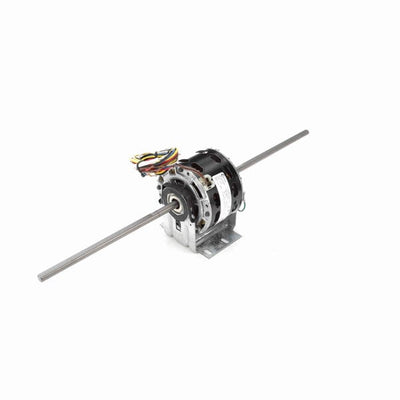

Century Window+Room Air Conditioniq, 1075 RPM, 1/10-1/15-1/25-1/35 HP, 115 V, 42 Frame, Open Air Over

Availability:
In-Stock
  • Fan Coil - Dual Wheel Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 48" Leads
  • Resilient Base

$227.00 USD

Title
Buy Now
SKU:
362A
ID:
HM105-0025

PRODUCT INFO

Features
Sleeve bearing. Automatic reset thermal protection. 30" leads |Shaft is same length at both ends

SPECIFICATIONS

Nameplate Specifications
UPC786674070647
Output HP1/10-1/15-1/25-1/35 Hp
Frequency60 Hz
Current1.7 A
Service Factor1
DutyContinuous Air Over
Frame42Y
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Base
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
2.92 in
Shaft Extension10.6X.5X10.6 in
RotationClockwise Lead End
Frame MaterialRolled Steel
Overall Length24.75 in
Shaft Diameter0.500 in
