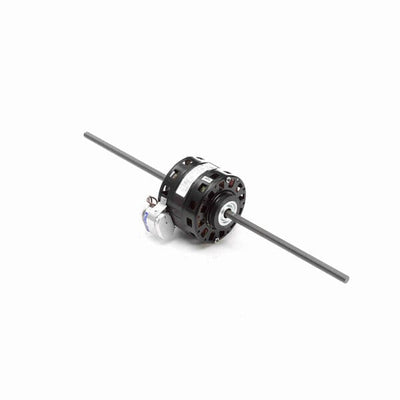

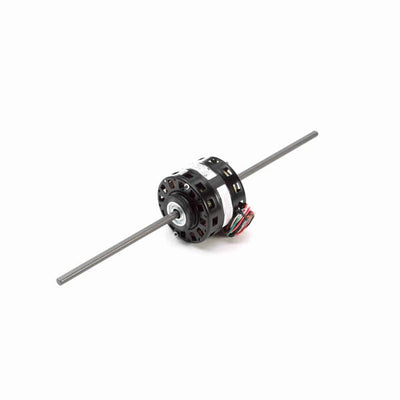

Century Window+Room Air Conditioniq, 1550 RPM, 1/5 HP, 208-230 V, 42 Frame, Open Air Over
- Fan Coil - Dual Wheel Blower Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Double Flats
- 30" Leads
- Resilient Ring Mounting
$215.25 USD
PRODUCT INFO
Applications
Motors for floor or ceiling mounting
Features
Sleeve bearing. Thermally protected, open construction. Resilient mounting rings included. 1/2" diameter flatted shaft
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674018458 |
| Output HP | 1/5 Hp |
| Frequency | 60 Hz |
| Current | 2.8 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1550 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Air Over |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Shaft Extension | 10.2X.5X10.2 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Na |
| Overall Length | 24.00 in |
| Shaft Diameter | 0.500 in |
