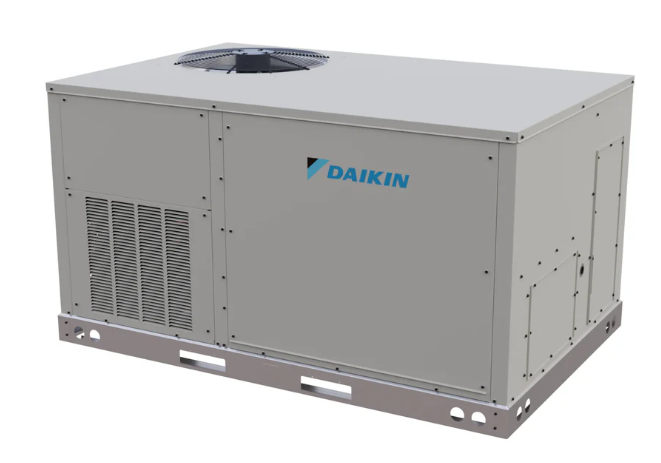

Daikin 3 Ton 14 SEER2 Commercial Package Air Conditioner R32 230V 1 Phase- DSC0361D000001S
Product Overview
The Daikin DSC Commercial Packaged Air Conditioner is a self-contained rooftop cooling system engineered for reliable, energy-efficient performance in commercial applications. Backed by decades of HVAC innovation, Daikin has grown into one of the world’s leading manufacturers of air conditioning systems, refrigerants, and comfort solutions.
Designed for flexibility, DSC packaged units support both new construction and retrofit projects. Many models are built as direct rooftop replacements, often eliminating the need for a curb adapter—helping reduce installation time and overall project costs.
Quick Facts
System Type: Packaged Commercial Air Conditioner (Cooling Only)
Configuration: Self-Contained Rooftop Unit
Application: Light to mid-sized commercial buildings
Installation: Suitable for new construction & retrofit
Replacement Design: Direct replacement for many existing rooftop units
Efficiency Focus: Energy-saving operation for lower operating costs
Brand Heritage: Daikin – Global HVAC manufacturer since 1951
Primary Benefit: Fast installation, dependable performance, reduced lifecycle costs
$3,897.00 USD
SKU:
DSC0361D000001S
ID:
HE101-2173
PRODUCT INFO
Standard Features
High-performance, low-noise scroll compressors (single or two-stage by size)
Factory-charged with low GWP R-32 refrigerant
High/low pressure switches & internal overload protection
Direct-drive supply fan with aluminum blades for quiet, efficient airflow
Ball bearing EEM motor (no belts or lubrication required)
Factory-balanced fan assemblies
Integrated electromechanical controls with 24V wiring
Draw-through evaporator coil for improved dehumidification
Copper tube / aluminum fin coils
Large outdoor coil with microchannel condenser technology
Single-point power entry & terminal strip connections
Standard, easy-replace air filters
Cabinet Features
Tool-less filter access
Fully insulated cabinet with foil-faced insulation
1″ raised supply/return flanges
Heavy-gauge galvanized steel base rails (min. 3.5″) with rigging points
Flexible electrical entry (base or horizontal knockout)
SPECIFICATIONS
| Brand | Daikin | SKU | DSC0361D000001S |
| Refrigerant Charge | Pre-charged | Weight (in lbs) | 484 |
| Replaces | DFC0361D000001S | Cooling BTU | 36,000 BTU |
| Drive Type | Direct | Maximum CFM | 1250 |
| Decibel Level (dBA) | 78 decibels | Refrigerant | R32 |
| SEER1 (Efficiency) | 14 | EER | 12 |
| Condenser Stages | Single Stage | Compressor Type | Scroll |
| Electrical | 208 / 230 V. 1 Phase 60 Hz | Phase | Single Phase |
| Max Breaker Size | 40 amps | Min. Breaker Size | 24.7 amps |
| Tonnage | 3 Ton | Height | 38.8" |
| Width | 73.9" | Depth | 48.1" |
| Shipping Weight | 554 |
