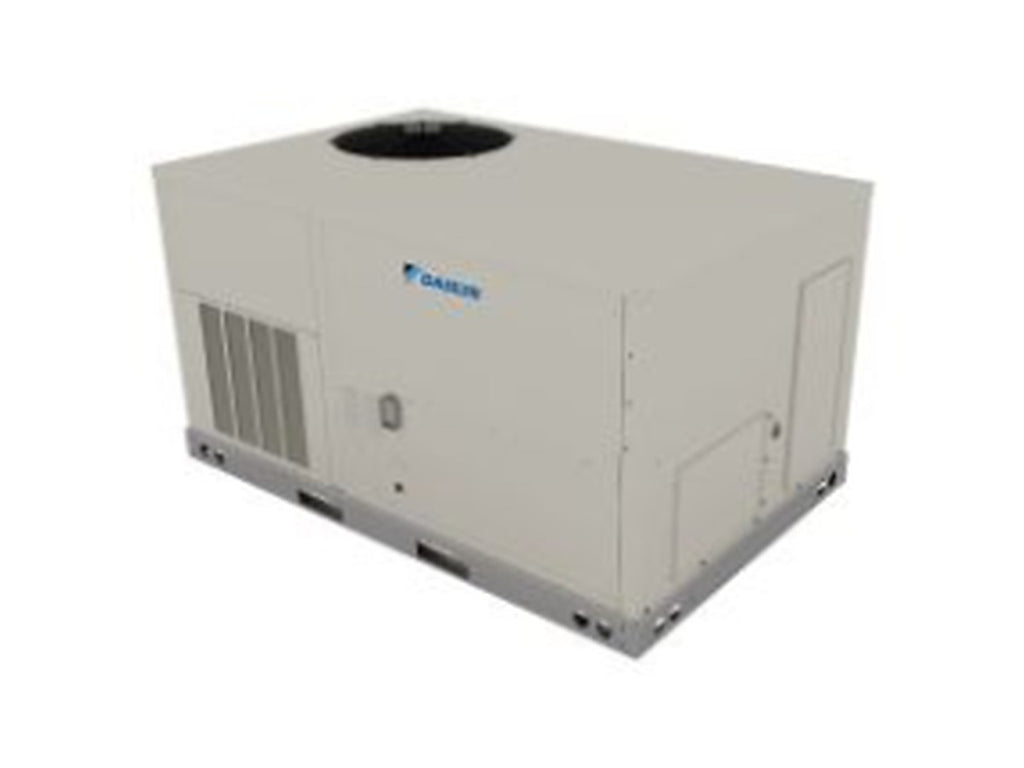

Daikin 3 Ton 14 SEER2 R-32 45,000 Btu Commercial Gas Package Air Conditioner- DSG0363DL00001S
Product Description:
The Daikin DSG0363DL00001S is a 3‑ton (≈35,000 BTU) light commercial packaged gas/electric HVAC unit that delivers dependable year‑round heating and cooling in a single self‑contained system. Designed for small to mid‑sized commercial spaces such as offices, clinics, and retail buildings, this rooftop or ground‑mounted unit combines electric cooling with gas furnace heating to provide balanced comfort and efficient operation. It uses R‑32 refrigerant for lower environmental impact and features a single‑stage scroll compressor with direct‑drive fans and a rugged galvanized steel cabinet for durability and simplified service.
Quick Facts:
- Model: DSG0363DL00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~35,000 BTU (~3 tons)
- Heating Capacity: ~45,000 BTU/hr (gas furnace)
- Compressor: Single‑stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81 % AFUE (typical for this size)
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,160 CFM nominal
- Fan Type: Direct‑drive blower and condenser fans
- Cabinet: Heavy‑gauge galvanized steel with UV‑resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
$4,869.00 USD
SKU:
DSG0363DL00001S
ID:
HE101-2229
PRODUCT INFO
Standard Features:
- High-performance, low-noise scroll compressors with vibration-isolated mounting
- Factory-charged with low-GWP R-32 refrigerant
- Single-stage 3–5 ton or two-stage 6 ton compressors with internal overload protection
- Compressor located outside condenser to prevent air bypass
- Direct-drive SWSI supply fan with aluminum blades and EEM motor—no belts, bearings, or lubrication required
- Factory-trimmed fans with thermal overload protection for reliable operation
- Draw-through indoor coil with copper/aluminum construction for efficient dehumidification
- Large face area outdoor coils with microchannel condenser technology
- ETL-certified gas furnace with Wrinkle Bend Technology for improved heat transfer and durability
- Tubular in-shot burners with induced draft fan, flame roll-out, and airflow safety switches
- Fully integrated heating control and factory-wired 24V electromechanical control package
- Single-point power entry and terminal strips for easy installation
- Draw-through filter section with standard off-the-shelf filters
Cabinet Features:
- Tool-less filter access for easy maintenance
- Fully insulated with foil-faced fiberglass to prevent sweating and thermal losses
- Raised flanges around supply and return
- Heavy-gauge galvanized steel perimeter base rail for structural support and lifting
- Electrical access through base or horizontal knockout for field installation
SPECIFICATIONS
| Model Number(s) | DSG0363DL00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 30 |
| Maximum CFM | 1,160 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 576 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263933 |
