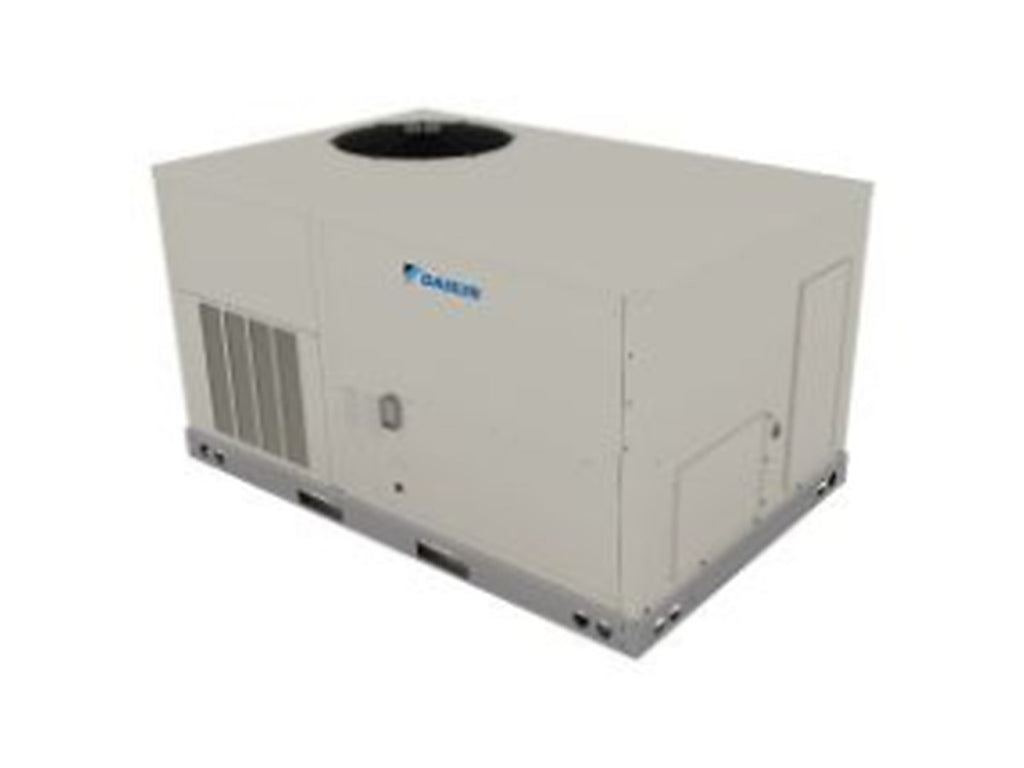

Daikin 3 Ton 14 SEER2 R-32 70,000 Btu Commercial Gas Package Air Conditioner- DSG0363DM00001S
Product Description:
The Daikin DSG0363DM00001S is a 3‑ton (≈35,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground-mounted installations in small to mid-sized commercial spaces such as offices, clinics, and retail buildings. This self-contained system combines electric cooling with gas furnace heating to provide year-round comfort with efficient operation. Featuring R‑32 refrigerant, a single-stage scroll compressor, and direct-drive fans, it delivers reliable performance, easy maintenance, and lower environmental impact. The rugged galvanized steel cabinet ensures durability in outdoor conditions and simplified serviceability.
Quick Facts:
- Model: DSG0363DM00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~35,000 BTU (~3 tons)
- Heating Capacity: ~45,000 BTU/hr (gas furnace)
- Compressor: Single-stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81% AFUE
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,160 CFM nominal
- Fan Type: Direct-drive condenser and blower fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
$4,885.00 USD
SKU:
DSG0363DM00001S
ID:
HE101-2230
PRODUCT INFO
Standard Features:
- Low-noise, high-performance scroll compressor(s) with internal overload protection and vibration isolation.
- Factory-charged with environmentally friendly R‑32 refrigerant.
- Single-stage 3‑5 ton, 6 ton 2-stage compressor; positioned outside condenser to avoid air bypass.
- Direct-drive airfoil supply fan with aluminum blades and EEM motor—no belts or lubrication required.
- Fan assemblies dynamically balanced; motor with thermal overload protection.
- Draw-through indoor coil with copper tubes and aluminum fins; factory pressure tested.
- Large face-area outdoor coils with microchannel heat exchangers for efficiency.
- ETL-certified gas furnace modules with Wrinkle Bend technology, flame rollout, and airflow safety switches.
- Heating fully integrated with unit controls for reliable operation.
- Factory-wired 24V electromechanical controls with single-point power entry and terminal strips.
- Standard draw-through filter section with off-the-shelf replaceable filters.
Cabinet Features:
- Tool-less filter access for easy maintenance.
- Fully insulated with foil-faced fiberglass to prevent sweating and thermal losses.
- 1-inch raised flanges on supply and return.
- Heavy-gauge galvanized steel perimeter base rail (≥3.5″) for structural strength and forklift lifting.
- Flexible electrical entry via base or horizontal knockout for field installation.
SPECIFICATIONS
| Model Number(s) | DSG0363DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 30 |
| Maximum CFM | 1,160 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 581 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263940 |
