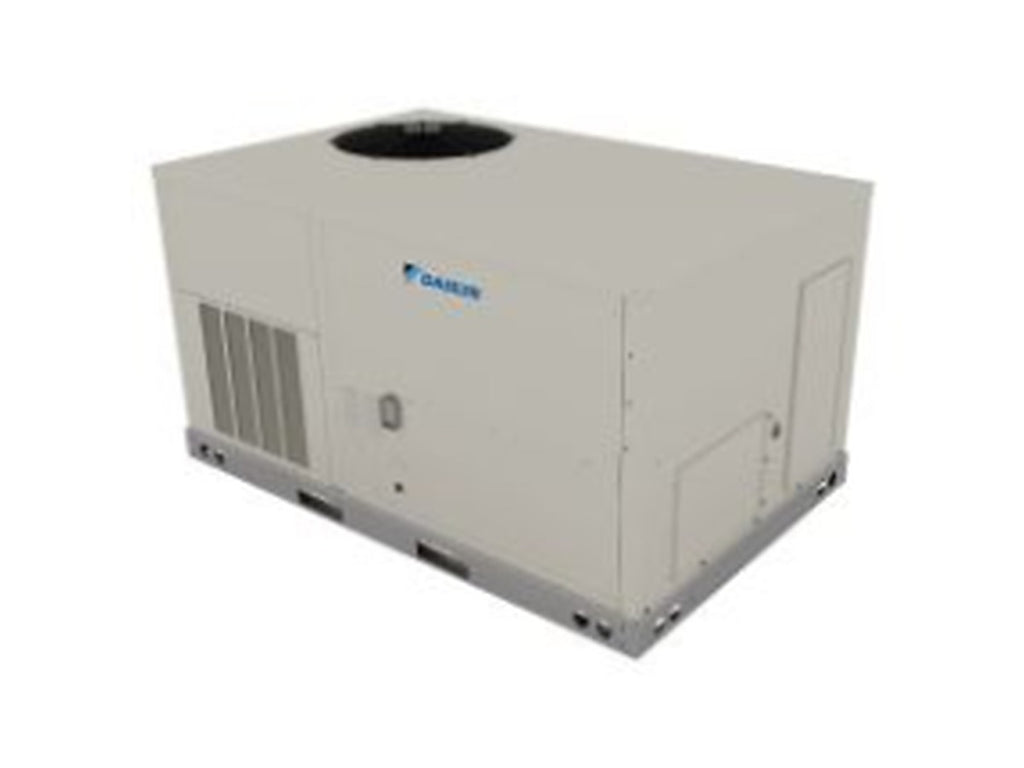

Daikin 3 Ton 14 SEER2 R-32 90,000 Btu Commercial Gas Package Air Conditioner- DSG0361DH00001S
Product Overview
The Daikin DSG0361DH00001S is a 3‑ton (≈35,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground‑mounted installations in small‑to‑medium commercial spaces. Combining gas furnace heating with electric cooling in a single self‑contained unit, it offers balanced comfort for office spaces, retail locations, and light industrial buildings. Built with R‑32 refrigerant compatibility and a single‑stage scroll compressor, this unit emphasizes reliable performance, lower operating costs, and simplified serviceability. Typical features include direct‑drive fan systems, high‑quality coils, and a rugged galvanized steel cabinet for extended outdoor durability.
Quick Facts
- Model: DSG0361DH00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~35,000 BTU (~3 tons)
- Heating Capacity: ~90,000 BTU/hr (gas furnace)
- Compressor: Single‑stage scroll
- Refrigerant: R‑32 (low GWP)
- Efficiency: Up to 14 SEER2 / 12 EER2 cooling
- Voltage/Phase: 208–230 V / Single‑phase
- Airflow: ~1,160 CFM nominal
- Fan Type: Direct‑drive condenser and blower fans
- Cabinet: Heavy‑gauge galvanized steel with powder‑coat finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
- Weight: ~512 lbs
$4,461.00 USD
SKU:
DSG0361DH00001S
ID:
HE101-2226
PRODUCT INFO
Standard Features:
- High-performance, low-noise scroll compressors (single or 2-stage) with vibration isolation
- Refrigeration circuits with high/low pressure safety switches
- Factory-charged R-32 refrigerant (low GWP)
- Direct-drive supply fans (SWSI, aluminum blades) with dynamically balanced assemblies
- Ball-bearing EEM motors—no belts or lubrication needed, thermal overload protected
- Draw-through indoor coil for improved dehumidification
- Copper tube / aluminum fin evaporator coils, factory pressure-tested
- Large face area microchannel condenser coils for efficiency and reduced refrigerant load
- ETL-certified heating modules with Wrinkle Bend Technology for optimal heat transfer
- Single-phase 5 ton: 81% AFUE; 3-phase units: ≥81% Thermal Efficiency
- Tubular furnace with in-shot burners, induced draft fan, and flame/airflow safety switches
- Factory-wired 24‑volt electromechanical controls with single-point power entry
- Standard draw-through filter section with off-the-shelf replaceable filters
Cabinet Features:
- Tool-less filter access for easy service
- Fully insulated cabinet (foil-faced fiberglass) to prevent condensation and thermal loss
- 1" raised supply/return flanges
- Heavy-gauge galvanized steel perimeter base rails (rigging/forklift ready)
- Flexible electrical entry (base or side knockouts)
SPECIFICATIONS
| Model Number(s) | DSG0361DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 40 |
| Maximum CFM | 1,160 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 582 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190263872 |
