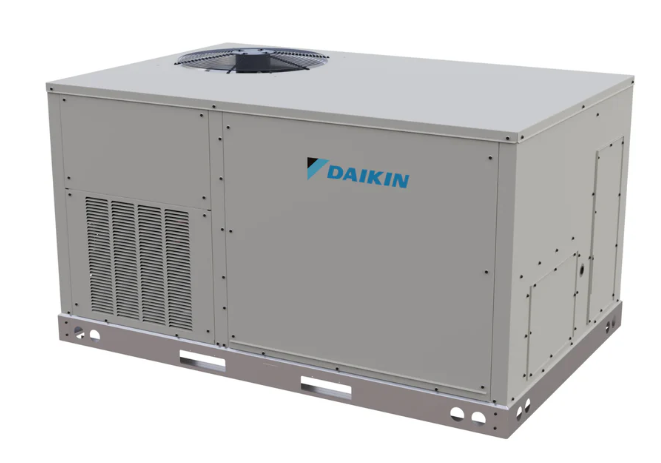

Daikin 3 Ton 16.6 SEER2 R-32 115,000 Btu Commercial Gas Package Air Conditioner- DHG0361DH00001S
Product Overview
The Daikin DHG0361DH00001S is a 3‑ton light commercial packaged gas/electric rooftop HVAC unit that delivers efficient cooling and reliable gas heating in one self‑contained system. Using environmentally friendly R‑32 refrigerant, a two‑stage scroll compressor, and a direct‑drive ECM blower, it provides dependable comfort and straightforward installation for smaller commercial spaces such as offices, retail stores, and clinics.
Quick Facts
-
Model: Daikin DHG0361DH00001S
-
Type: Light Commercial Packaged Gas/Electric HVAC Unit
-
Cooling Capacity: ~35,000 BTU / 3 Tons
-
Efficiency: ~16.6 SEER2 / 12.5 EER2
-
Heating Capacity: ~93,000 BTU (high heat)
-
Refrigerant: R‑32
-
Compressor: Two‑Stage Scroll
-
Blower: Direct‑Drive ECM
-
Voltage: 208–230 V, 1‑Phase
-
Installation: Rooftop or Ground Mount
-
Use: Offices, Retail, Clinics
$4,549.00 USD
SKU:
DHG0361DH00001S
ID:
HE101-2178
PRODUCT INFO
Standard Features
High-performance, low-noise scroll compressors with vibration isolation.
Two-stage scroll compressor with internal overload protection; uses eco-friendly R32 refrigerant.
Direct-drive, aluminum-blade supply fan with ECM motor, factory-balanced, low maintenance, thermal protection.
Indoor draw-through coil for better dehumidification; copper/aluminum construction, factory-tested.
Large outdoor coils with microchannel heat exchangers for high efficiency.
ETL-certified gas heat modules with Wrinkle Bend Technology; single-phase 5 ton at 81% AFUE, 3-phase ≥81% thermal efficiency.
Tubular furnace with induced draft fan, flame rollout, and high-temperature safety switches; fully factory-tested.
Integrated heating controls, factory-wired 24V, single-point power entry.
Draw-through filter section with standard replaceable filters.
Cabinet Features
Tool-less filter access; fully insulated to prevent sweating and thermal loss.
1-inch raised flanges on supply/return.
Heavy-gauge galvanized steel base with forklift/rigging holes.
Electrical entry via base or knockout for easy installation.
SPECIFICATIONS
| Model Number(s) | DHG0361DH00001S |
| Brand | Daikin |
| Type | Air Conditioning |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Voltage | 208/230V |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 40 |
| Maximum CFM | 1,160 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 572 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264923 |
