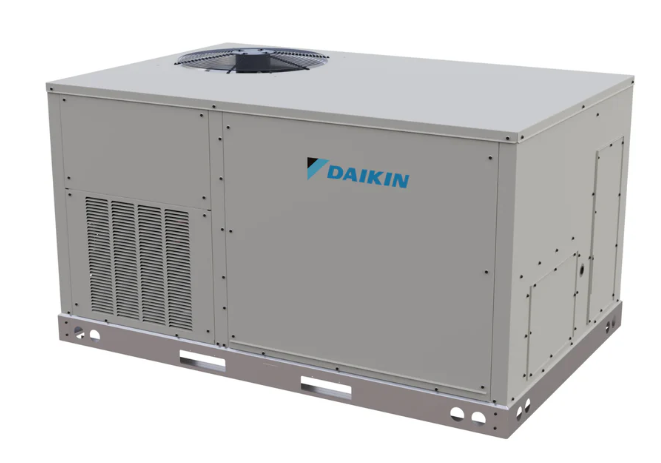

Daikin 3 Ton 16.6 SEER2 R-32 80,000 Btu Commercial Ultra Low-NOx Gas Package Air Conditioner- DHG0361D800001F
Product Overview
The Daikin DHG0363D800001F (closely related model to DHG0361D800001F) represents Daikin’s 3‑ton light commercial packaged gas/electric rooftop HVAC unit line within the DHG Series. These units combine efficient cooling with reliable gas heating in one self‑contained system for year‑round comfort in smaller commercial applications such as offices, retail spaces, clinics, and similar buildings. They are designed for rooftop or ground installation, use R‑32 refrigerant for improved energy performance, and are engineered for easy installation and dependable operation.
Quick Facts
Model: Daikin DHG0361D800001F (same spec family as the above product)
Product Type: Light Commercial Packaged Gas/Electric HVAC Unit
Nominal Cooling Capacity: ~35,000 BTU / 3 Tons
Efficiency Ratings: ~16.6 SEER2 / ~12.5 EER2
Nominal Heating Capacity: ~80,000 BTU (medium‑range gas heat)
Refrigerant: R‑32 standard efficiency design
Compressor: Two‑stage scroll (cooling) with multi‑speed ECM blower
Voltage: Typically 208‑230 V (phase configuration varies by install)
Airflow: Designed for standard commercial airflow (varies by configuration)
Installation: Rooftop or ground‑mount
Applications: Light commercial buildings (offices, retail, clinics)
$5,295.00 USD
SKU:
DHG0361D800001F
ID:
HE101-2177
PRODUCT INFO
Standard Features
Two-stage scroll compressors with vibration isolation and overload protection
Factory-charged R‑32 refrigerant with safety switches
Direct-drive ECM fan, thermally protected and dynamically balanced
Copper/aluminum indoor coils; large outdoor microchannel coils
ETL-certified gas heating modules with safety protections
Integrated 24V controls, single-point power entry
Draw-through filter section with standard, replaceable filters
Cabinet Features
Tool-less filter access for easy maintenance
Fully insulated interior to prevent sweating and thermal loss
Raised supply/return flanges and heavy-gauge steel base rails
Flexible electrical entry for quick installation
SPECIFICATIONS
| Model Number(s) | DHG0361D800001F |
| Brand | Daikin |
| Type | Air Conditioning |
| Ton | 3.0 Ton |
| Cooling Btu | 35,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Voltage | 208/230V |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 40 |
| Maximum CFM | 1,160 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 572 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264916 |
