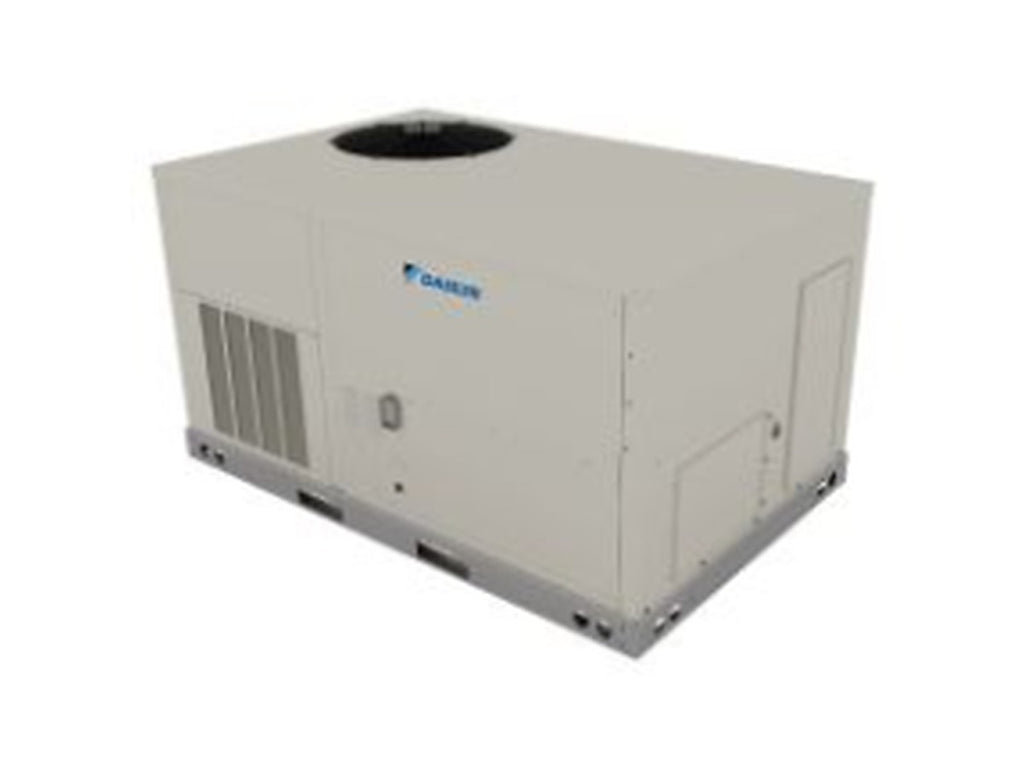

Daikin 4 Ton 13.7 SEER2 R-32 115,000 Btu Commercial Gas Package Air Conditioner- DSG0483DH00001S
Product Description
The Daikin DSG0483DH00001S is a 4‑ton (≈46,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground‑mounted installation in medium commercial spaces such as offices, retail environments, and clinics. This self‑contained system combines electric cooling and gas furnace heating to deliver reliable, year‑round comfort. It uses R‑32 refrigerant for modern efficiency and compliance, a single‑stage scroll compressor for dependable performance, and direct‑drive motors for low maintenance and quiet operation. The rugged galvanized steel cabinet with UV‑resistant finish adds durability for outdoor use and simplifies servicing.
Quick Facts
- Model: DSG0483DH00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~46,000 BTU (~4 tons)
- Heating Capacity: ~115,000 BTU/hr gas furnace
- Compressor: Single‑stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~13.4 SEER2 / ~11.5 EER2
- Heating Efficiency: ~81 % AFUE (typical for this class)
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,600 CFM nominal
- Fan Type: Direct‑drive blower and condenser fans
- Cabinet: Heavy‑gauge galvanized steel with UV‑resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 47‑5⁄8″ D × 39‑7⁄8″ H
$4,844.00 USD
SKU:
DSG0483DH00001S
ID:
HE101-2233
PRODUCT INFO
Standard Features:
- High-performance, low-noise scroll compressors with internal overload protection, mounted on vibration-isolating grommets.
- Factory-charged with low-GWP R-32 refrigerant; single-stage 3–5 ton, 6 ton 2-stage compressor.
- Compressor located outside condenser to prevent air bypass.
- Direct-drive airfoil supply fan (SWSI) with aluminum blades and ball-bearing EEM motor for quiet, efficient, low-maintenance operation.
- Factory-trimmed fans and electromechanical controls for reliable airflow modulation; thermal overload protection included.
- Indoor draw-through copper/aluminum coil for better dehumidification; large face-area outdoor coils with microchannel condenser for efficiency.
- ETL-certified heating modules with Wrinkle Bend Technology for improved heat transfer and durability; 3-phase units ≥81% thermal efficiency.
- Tubular furnace design with in-shot gas burner, induced draft fan, flame rollout, high-temperature, and airflow safety switches.
- Fully integrated heating controls; factory-wired 24V electromechanical controls with single-point power entry and terminal strips.
- Draw-through filter section with standard-size replaceable filters for improved air quality and maintenance.
Cabinet Features:
- Tool-less filter access and fully insulated with foil-faced fiberglass.
- Raised 1″ flanges around supply/return; heavy-gauge galvanized steel base rail ≥3.5″ for structural strength.
- Base rail includes forklift rigging holes; electrical lines accessible via base or horizontal knockout for easy installation.
SPECIFICATIONS
| Model Number(s) | DSG0483DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 4.0 Ton |
| Cooling Btu | 46,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 35 |
| Maximum CFM | 1,600 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 628 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264077 |
