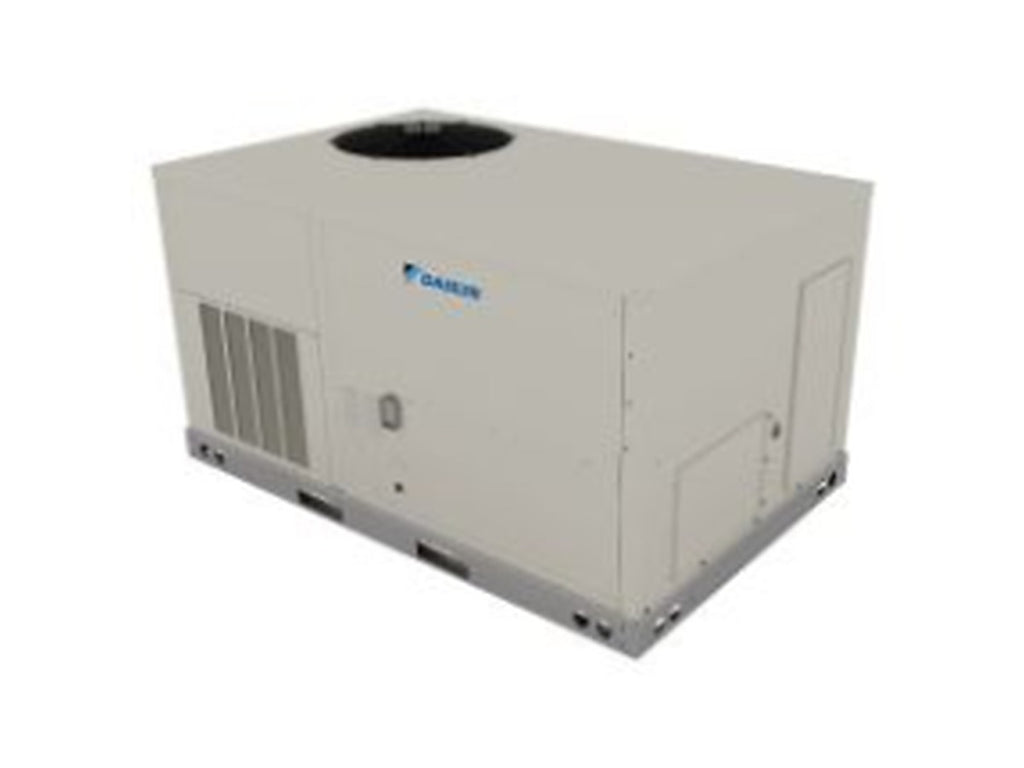

Daikin 4 Ton 13.7 SEER2 R-32 90,000 Btu Commercial Gas Package Air Conditioner- DSG0483DM00001S
Product Description
The Daikin DSG0483DM00001S is a 4‑ton (≈48,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground‑mount installation in medium commercial spaces such as offices, clinics, retail stores, and similar environments. This self‑contained system combines electric cooling with gas furnace heating to deliver dependable year‑round comfort and efficient operation. It features R‑32 refrigerant for improved efficiency and lower environmental impact, a single‑stage scroll compressor for reliable cooling performance, and direct‑drive fans for quiet, low‑maintenance operation. The durable galvanized steel cabinet provides long-lasting outdoor durability and simplified serviceability.
Quick Facts
- Model: DSG0483DM00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~48,000 BTU (~4 tons)
- Heating Capacity: ~120,000 BTU/hr (gas furnace)
- Compressor: Single‑stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~13.4 SEER2 / ~11.5 EER2
- Heating Efficiency: ~81 % AFUE (typical)
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,600 CFM nominal
- Fan Type: Direct‑drive blower and condenser fans
- Cabinet: Heavy‑gauge galvanized steel with UV‑resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 47‑5⁄8″ D × 39‑7⁄8″ H
$5,011.00 USD
SKU:
DSG0483DM00001S
ID:
HE101-2235
PRODUCT INFO
Standard Features – Daikin Packaged Gas/Electric HVAC
- High-performance, low-noise scroll compressors with vibration isolation, R‑32 refrigerant, and overload protection.
- Direct-drive supply and condenser fans with EEM motors for efficient, quiet, low-maintenance operation.
- Draw-through indoor coil with copper/aluminum construction; large outdoor and microchannel condenser coils.
- ETL-certified gas furnace with Wrinkle Bend Technology, induced draft fan, and integrated safety controls.
- Factory-wired 24V controls, single-point power entry, and off-the-shelf filter section for easy maintenance.
Cabinet Features
- Fully insulated galvanized steel cabinet with tool-less filter access and 1″ raised flanges.
- Heavy-gauge base rails with forklift/rigging holes for strong, flexible installation.
- Electrical lines accessible through base or horizontal knockout for easy field installation.
SPECIFICATIONS
| Model Number(s) | DSG0483DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 4.0 Ton |
| Cooling Btu | 46,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 35 |
| Maximum CFM | 1,600 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 620 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264091 |
