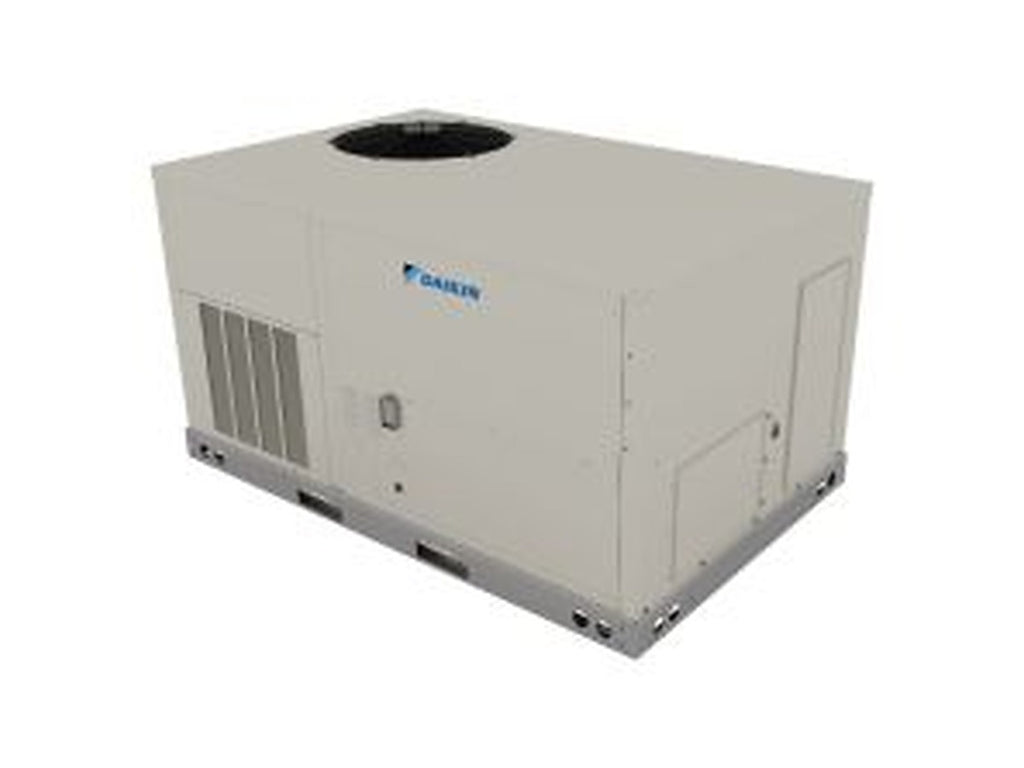

Daikin 4 Ton Light Commercial Packaged Air Conditioner- 208/230V 3PH R32, DHC0483D000001S
Product Overview
The Daikin DHC0483D000001S is a rooftop packaged air conditioner that integrates the compressor, condenser coil, evaporator, and blower assembly into a single, compact unit. This all-in-one design simplifies HVAC planning and reduces installation complexity, optimizing rooftop space usage. Built for light commercial applications, it delivers reliable cooling across offices, retail spaces, and other commercial settings.
Quick Facts
-
Model / SKU: DHC0483D000001S
-
System Type: Packaged Rooftop Air Conditioner
-
Cooling Capacity: 4 Ton
-
Cooling Output: ~46,000 BTU
-
Voltage: 208–230 V
-
Phase: 3-Phase Power
-
Refrigerant: R-32
-
SEER2 Rating: ~16.4
-
Drive Type: Direct Drive
-
Design: Light Commercial Packaged Rooftop Configuration
-
Application: Commercial Cooling
-
Dimensions (L × W × H): ~74″ × 48 5⁄16″ × 43 1⁄2″
$4,907.00 USD
SKU:
DHC0483D000001S
ID:
HE101-2164
PRODUCT INFO
Capacity & Coverage
The Daikin DHC0483D000001S is built for large commercial spaces. Its 4-ton capacity is ideal for retail stores, restaurants, offices, schools, and light industrial areas, providing consistent temperature control and comfort during peak cooling periods.
Efficiency
With an approximate 16.4 SEER2 and 12.2 EER2 rating, this unit delivers reliable energy performance for commercial applications. The use of R-32 refrigerant enhances operational efficiency while adhering to modern environmental standards for HVAC systems.
Construction & Design
The DHC0483D000001S features a durable rooftop cabinet designed for outdoor use. Its internal airflow paths ensure even air distribution, while the direct-drive fan system supports consistent performance. The compact, all-in-one design simplifies installation and improves overall system efficiency.
Installation & Application
Designed for rooftop installation on commercial buildings with 208–230V, 3-phase power, the factory-assembled unit simplifies duct integration and placement. Suitable for both new construction and retrofit projects, it provides an efficient packaged cooling solution for light commercial spaces.
Noise & Comfort
This unit’s commercial-grade airflow system maintains stable indoor temperatures and ensures consistent comfort. Its balanced design supports reliable operation across a variety of commercial environments while minimizing operational noise.
SPECIFICATIONS
Brand
Daikin
Model #
DHC0483D000001S
Refrigerant
R-32
Tonnage
4.0 Ton
Voltage Requirements
208V To 230V
Power Phase ( Single/Three)
3 Ph
Dimensions - (Shipping Unit Width)
48-5/16 in
Dimensions - (Shipping Unit Height)
1.00 in
Dimensions - (Shipping Unit Depth)
1.00 in
Weight - (Shipping Unit)
1.000 lb
Power Frequency
60 Hz
Nom. CFM
810 r/min
Motor Speed Type
Multi Speed ECM
Min. Circuit Amps
22.8 A
Max Overcurrent Protection
30 A
Liquid Line Size
3/8 in
Energy Source
Electric
Expansion Device
TXV
Compressor Type
Scroll
Compressor Stages
Two Stage
Cooling Capacity - (Nominal)
46000 Btu/H
Function Category
Light Commercial Packaged Air Conditioner
