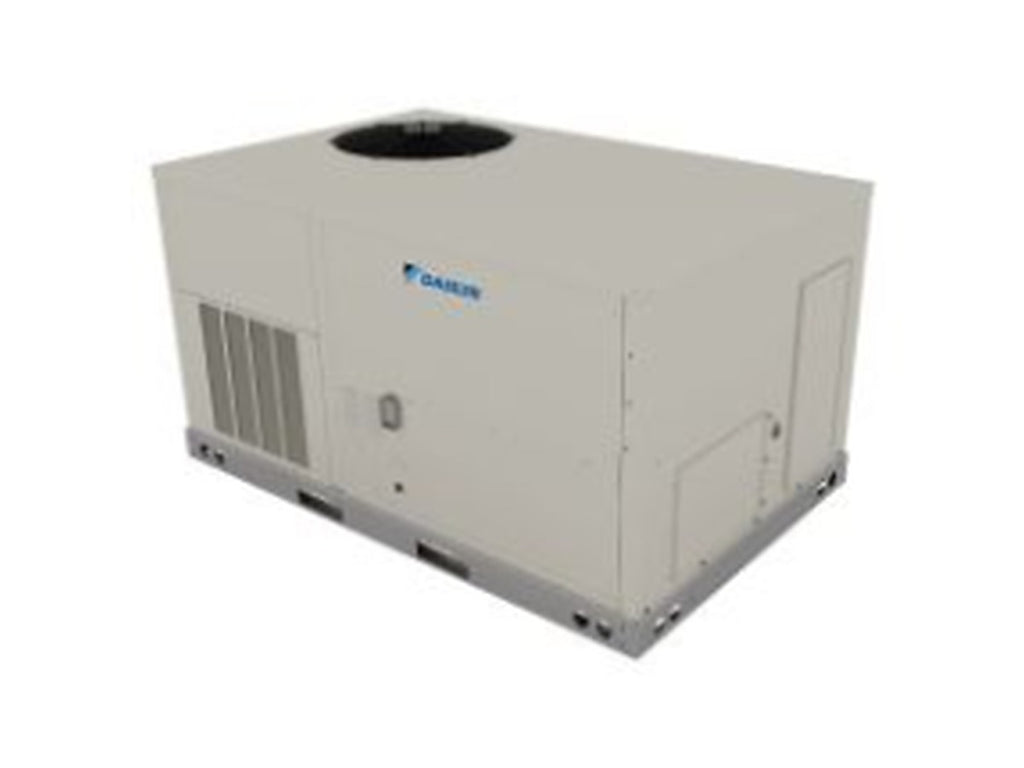

Daikin 5 Ton 13.7 SEER2 R-32 140,000 Btu Commercial Gas Package Air Conditioner- DSG0601DH00001S
Product Description:
The Daikin DSG0601DH00001S is a 5‑ton (≈60,000 BTU) light commercial packaged gas/electric HVAC unit, designed for rooftop or ground-mounted installation in medium to large commercial spaces such as offices, clinics, and retail buildings. This self-contained system combines efficient electric cooling with a reliable gas furnace to provide year-round comfort. It features R‑32 refrigerant for reduced environmental impact, a single-stage scroll compressor for dependable cooling performance, and direct-drive fans for quiet, low-maintenance operation. The rugged galvanized steel cabinet with UV-resistant finish ensures long-lasting durability and simplifies servicing.
Quick Facts:
- Model: DSG0601DH00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~60,000 BTU (~5 tons)
- Heating Capacity: ~150,000 BTU/hr (gas furnace)
- Compressor: Single-stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81% AFUE
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,900 CFM nominal
- Fan Type: Direct-drive blower and condenser fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
$5,287.00 USD
SKU:
DSG0601DH00001S
ID:
HE101-2236
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressor with vibration isolation and internal overload protection.
- Refrigeration circuit includes high/low pressure safety switches; factory-charged with low-GWP R32 refrigerant.
- Single-stage 3–5 ton, 6-ton 2-stage compressor; positioned outside condenser to prevent air bypass.
- Direct-drive airfoil supply fan with aluminum blades and EEM motor for efficient, quiet, low-maintenance operation.
- Factory-balanced fans; integrated electromechanical controls and thermal overload protection.
- Draw-through indoor coil with copper tubes and aluminum fins for efficient dehumidification; factory pressure tested.
- Large face area outdoor coils with microchannel heat exchanger technology.
- ETL-certified heating modules; Wrinkle Bend Technology enhances heat transfer and durability.
- Furnace with in-shot gas burner, induced draft fan, and safety switches; integrated heating control.
- Factory-wired with color-coded 24V controls, single-point power entry, and standard terminal strips.
- Draw-through filter section with standard off-the-shelf filters for easy maintenance.
Cabinet Features
- Tool-less filter access for easy servicing.
- Fully insulated cabinet to prevent sweating and thermal loss.
- Raised 1-inch flanges on supply and return; full perimeter heavy-gauge steel base rail with rigging/lifting holes.
- Electrical access through base or horizontal knockout for flexible installation.
SPECIFICATIONS
| Model Number(s) | DSG0601DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 5.0 Ton |
| Cooling Btu | 57,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 60 |
| Maximum CFM | 1,860 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 691 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264176 |
