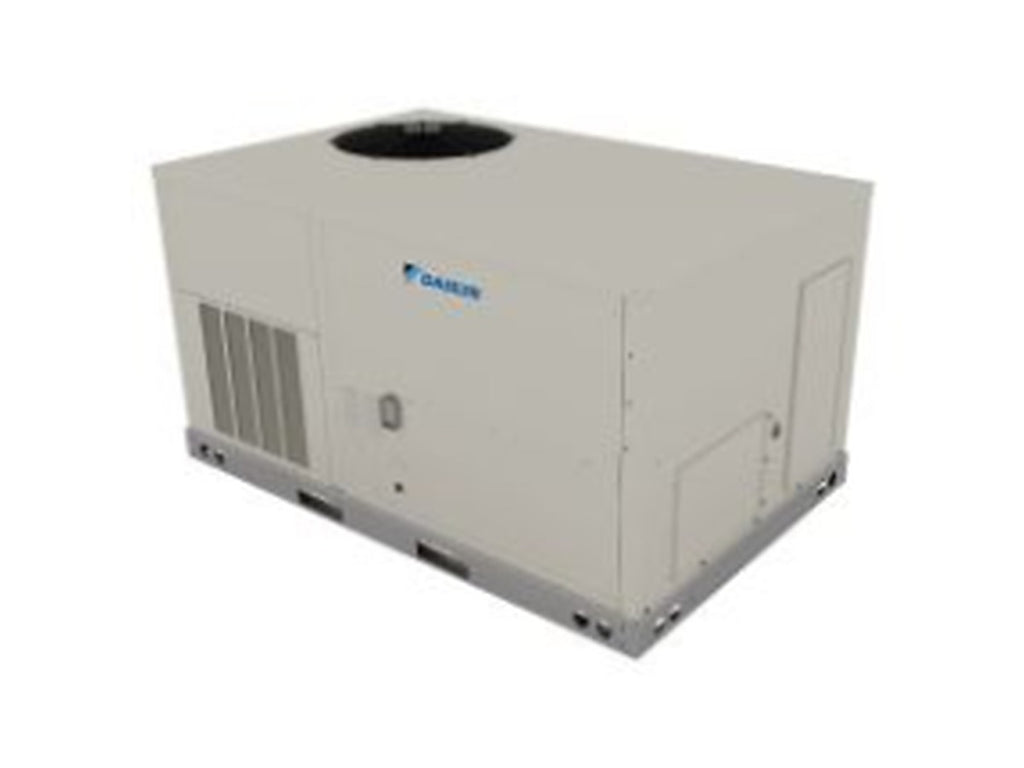

Daikin 5 Ton 13.7 SEER2 R-32 140,000 Btu Commercial Gas Package Air Conditioner- DSG0603DH00001S
Product Description:
The Daikin DSG0603DH00001S is a 5‑ton (≈60,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground-mounted installation in medium to large commercial spaces such as offices, clinics, and retail buildings. This self-contained system combines efficient electric cooling with a reliable gas furnace to provide year-round comfort. It uses R‑32 refrigerant for reduced environmental impact, a single-stage scroll compressor for dependable cooling performance, and direct-drive fans for quiet, low-maintenance operation. The rugged galvanized steel cabinet with UV-resistant powder finish ensures long-lasting durability and simplified servicing.
Quick Facts:
- Model: DSG0603DH00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~60,000 BTU (~5 tons)
- Heating Capacity: ~150,000 BTU/hr (gas furnace)
- Compressor: Single-stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81% AFUE
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,900 CFM nominal
- Fan Type: Direct-drive blower and condenser fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
$4,783.00 USD
SKU:
DSG0603DH00001S
ID:
HE101-2238
PRODUCT INFO
Standard Features:
- Low-noise, high-performance scroll compressors with vibration isolation.
- Factory-charged with eco-friendly R‑32 refrigerant; includes high/low pressure safety switches and internal overload protection.
- Direct-drive airfoil supply fan with EEM motor for quiet, efficient operation; dynamically balanced at factory.
- Draw-through indoor coil with copper tubes and aluminum fins; large face area outdoor coils with microchannel heat exchangers.
- ETL-certified gas furnace with Wrinkle Bend Technology, in-shot burners, induced draft fan, and integrated safety controls.
- Factory-wired 24V electromechanical controls, single-point power entry, and easy terminal strip access.
- Draw-through filter section with standard replaceable filters for improved air quality.
Cabinet Features:
- Tool-less filter access and fully insulated to prevent sweating and heat loss.
- Heavy-gauge galvanized steel base with 3.5″ perimeter rails for structural strength and rigging.
- Flexible electrical entry through base or horizontal knockouts for easy field installation.
SPECIFICATIONS
| Model Number(s) | DSG0603DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 5.0 Ton |
| Cooling Btu | 57,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 1,860 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 704 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264213 |
