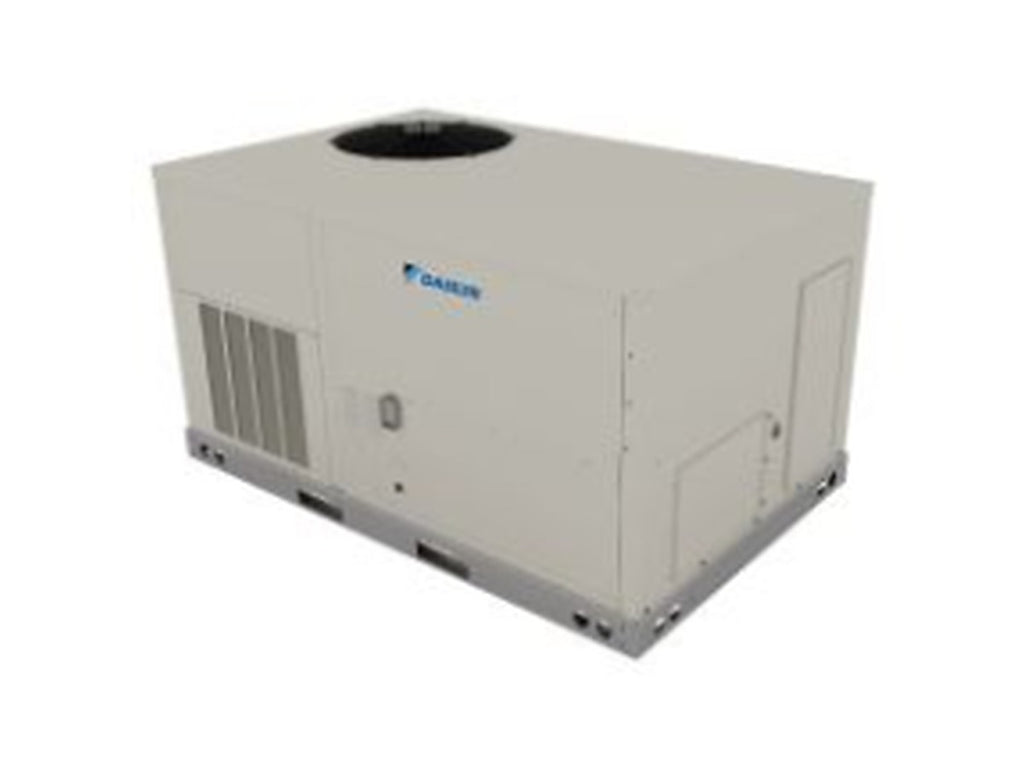

Daikin 5 Ton 13.7 SEER2 R-32 90,000 Btu Commercial Gas Package Air Conditioner- DSG0601DL00001S
Product Description
The Daikin DSG0601DL00001S is a 5‑ton (≈60,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground-mounted installation in medium to large commercial spaces such as offices, clinics, and retail stores. This self-contained system combines electric cooling with a gas furnace for reliable year-round comfort. It uses R‑32 refrigerant for lower environmental impact, a single-stage scroll compressor for dependable cooling, and direct-drive fans for quiet, low-maintenance operation. The rugged galvanized steel cabinet with UV-resistant finish ensures long-lasting durability and simplified servicing.
Quick Facts
- Model: DSG0601DL00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~60,000 BTU (~5 tons)
- Heating Capacity: ~150,000 BTU/hr (gas furnace)
- Compressor: Single-stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81 % AFUE
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,900 CFM nominal
- Fan Type: Direct-drive blower and condenser fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
$5,266.00 USD
SKU:
DSG0601DL00001S
ID:
HE101-2237
PRODUCT INFO
Standard Features
- Low-noise, high-performance scroll compressors with vibration-isolating rubber mounts.
- Factory-charged with environmentally friendly low-GWP R‑32 refrigerant.
- Single-stage 3–5 ton (6 ton 2-stage) compressor with internal overload protection.
- Direct-drive airfoil supply fan with aluminum blades and EEM motor for quiet, maintenance-free operation.
- Factory-trimmed fans with electromechanical motor controls and thermal overload protection.
- Draw-through indoor coil with copper tubes and aluminum fins, factory pressure-tested for efficiency.
- Large outdoor coils with microchannel heat exchangers for better performance and lower refrigerant charge.
- ETL-certified heating modules with Wrinkle Bend Technology for improved heat transfer and durability.
- Tubular gas furnace with induced draft fan, flame-rollout, high-temperature, and airflow safety switches.
- Factory-tested burner assemblies with fully integrated heating controls.
- Color-coded factory wiring with single-point power entry and terminal strips for easy installation.
- Draw-through filter section with standard off-the-shelf filters for easy replacement.
Cabinet Features
- Tool-less filter access and fully insulated cabinet to prevent sweating and thermal loss.
- Raised flanges around supply and return for secure connections.
- Heavy-gauge galvanized steel perimeter base rail, 3.5″ tall, with forklift and rigging holes.
- Electrical access through base or horizontal knockout for simplified installation.
SPECIFICATIONS
| Model Number(s) | DSG0601DL00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 5.0 Ton |
| Cooling Btu | 57,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 60 |
| Maximum CFM | 1,860 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 708 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264183 |
