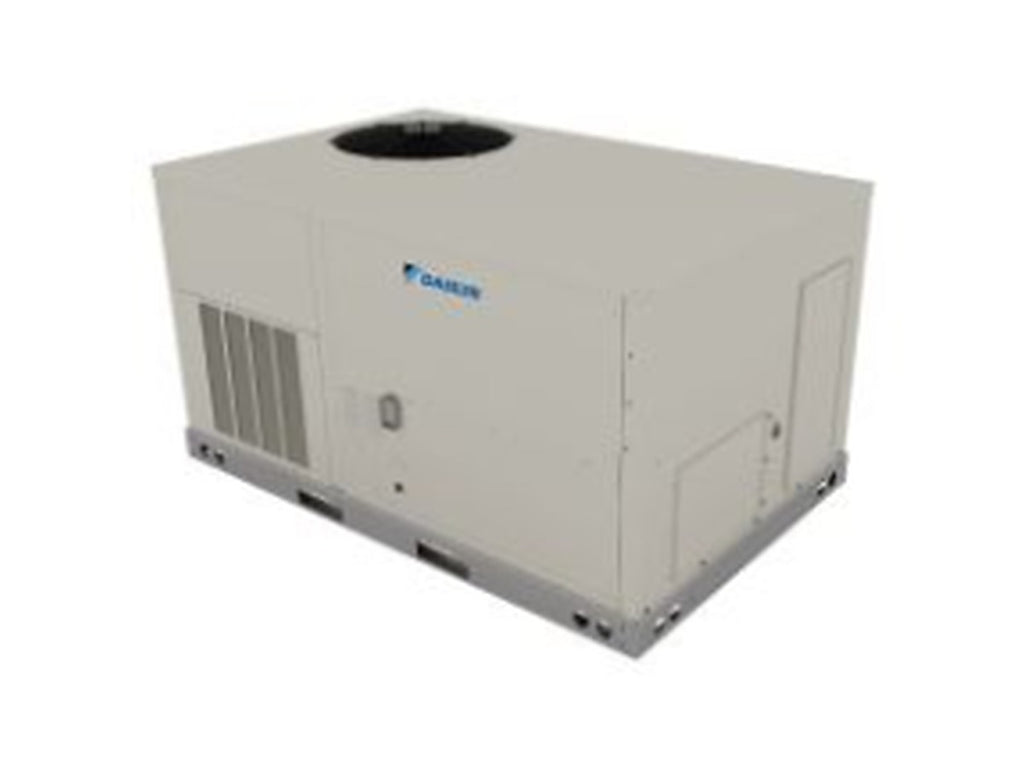

Daikin 5 Ton 13.7 SEER2 R-32 90,000 Btu Commercial Gas Package Air Conditioner- DSG0603DL00001S
Product Description:
The Daikin DSG0603DL00001S is a 5‑ton (≈60,000 BTU) light commercial packaged gas/electric HVAC unit, ideal for rooftop or ground-mounted installation in medium to large commercial spaces such as offices, clinics, and retail buildings. This self-contained system combines electric cooling with a gas furnace for reliable year-round comfort. It features R‑32 refrigerant for improved efficiency and lower environmental impact, a single-stage scroll compressor for dependable cooling, and direct-drive fans for quiet, low-maintenance operation. The rugged galvanized steel cabinet with UV-resistant powder finish provides long-lasting outdoor durability and simplified servicing.
Quick Facts:
- Model: DSG0603DL00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~60,000 BTU (~5 tons)
- Heating Capacity: ~150,000 BTU/hr (gas furnace)
- Compressor: Single-stage scroll
- Refrigerant: R‑32 (low GWP)
- Cooling Efficiency: ~14 SEER2 / ~12 EER2
- Heating Efficiency: ~81% AFUE
- Voltage/Phase: 208–230 V / 3‑Phase
- Airflow: ~1,900 CFM nominal
- Fan Type: Direct-drive blower and condenser fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant powder finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 48‑5⁄16″ D × 39‑7⁄8″ H
$5,452.00 USD
SKU:
DSG0603DL00001S
ID:
HE101-2239
PRODUCT INFO
Standard Features:
- High-performance, low-noise scroll compressors with vibration isolation.
- Factory-charged with environmentally friendly R‑32 refrigerant.
- Single-stage 3–5 ton, 6 ton 2-stage compressor; internal overload protection included.
- Direct-drive airfoil supply fan with aluminum blades and EEM motor for quiet, efficient operation.
- Factory-balanced fans; electromechanical controls modulate fan motor with thermal overload protection.
- Draw-through indoor coil section with copper tubes and aluminum fins for high efficiency; factory pressure tested.
- Large face area outdoor coils with microchannel heat exchangers for improved performance and lower refrigerant load.
- ETL-certified heating modules with Wrinkle Bend Technology for enhanced heat transfer and reliability.
- Tubular furnace with in-shot gas burners, induced draft fan, and safety switches for safe operation.
- Integrated heating control and factory-wired 24V electromechanical controls; single-point power entry.
- Draw-through filter section with standard off-the-shelf filters for easy maintenance.
Cabinet Features:
- Tool-less filter access for easy maintenance.
- Fully insulated cabinet to prevent sweating and thermal losses.
- Raised 1-inch flanges around supply and return; full perimeter heavy-gauge base rail for strength.
- Electrical entry via base or horizontal knockout for flexible installation.
SPECIFICATIONS
| Model Number(s) | DSG0603DL00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 5.0 Ton |
| Cooling Btu | 57,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 1,860 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 687 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264220 |
