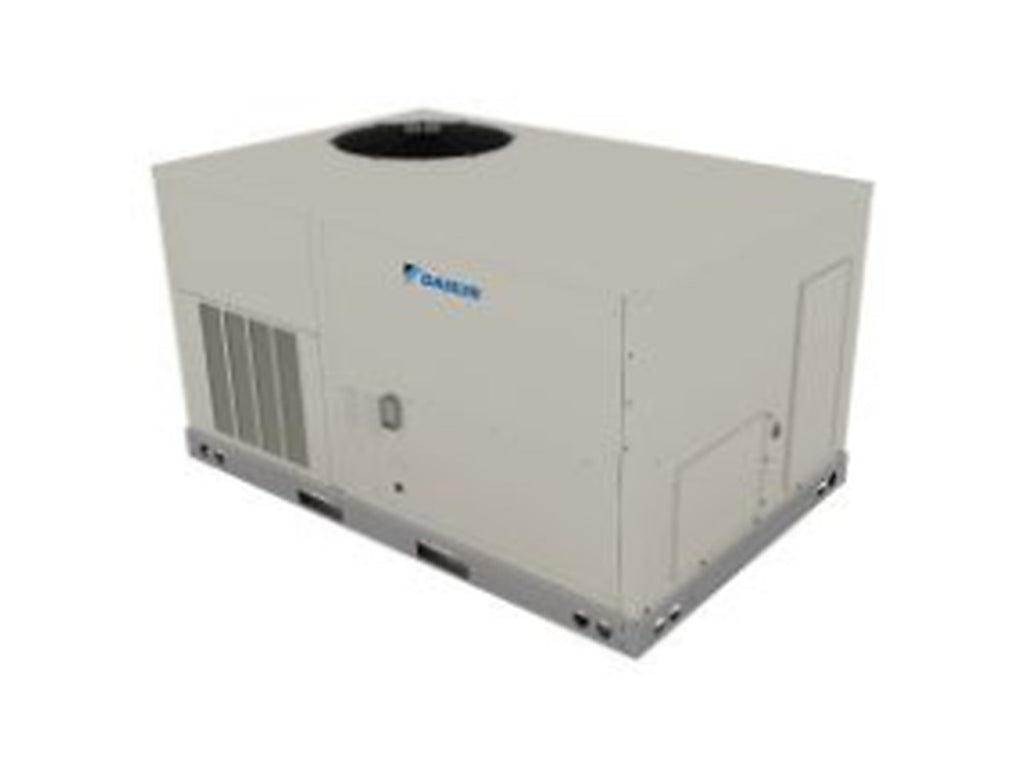

Daikin 6 Ton 16.7 IEER / 11.8 EER R-32 115,000 Btu Commercial Gas Package Air Conditioner- DSG0723DM00001S
Product Description:
The Daikin DSG0723DM00001S is a 6-ton (≈69,000–72,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground-mounted installations in medium to large commercial spaces. This all-in-one system combines efficient electric cooling with a gas furnace for dependable year-round comfort. It features R-32 refrigerant, a two-stage scroll compressor for enhanced efficiency and performance, and direct-drive fans for quiet, low-maintenance operation. The heavy-gauge galvanized steel cabinet ensures long-lasting durability and easy servicing.
Quick Facts:
- Model: DSG0723DM00001S
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~69,000–72,000 BTU (~6 tons)
- Heating Capacity: ~115,000 BTU/hr (gas furnace)
- Compressor: Two-stage scroll
- Refrigerant: R-32 (low GWP)
- Cooling Efficiency: ~16.7 SEER2 / ~11.8 EER2
- Heating Efficiency: ~80–81% AFUE
- Voltage/Phase: 208–230 V / 3-Phase
- Airflow: ~2,100 CFM nominal
- Fan Type: Direct-drive blower and condenser fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 47-5⁄8″ D × 43-1⁄2″ H
$6,843.00 USD
SKU:
DSG0723DM00001S
ID:
HE101-2243
PRODUCT INFO
Standard Features
- High-performance scroll compressors (single-stage 3–5 ton, 6-ton two-stage) with vibration isolation
- R-32 refrigerant; high/low pressure safety switches; internal overload protection
- Direct-drive fans with EEM motors for quiet, low-maintenance operation
- Factory-balanced fan assemblies with integrated controls
- Copper/aluminum draw-through coils; large outdoor coils; microchannel condenser
- ETL-certified gas heating with tubular heat exchanger and safety controls
- Fully factory-wired controls with single-point power and easy terminal connections
- Standard-size, easy-to-replace air filters
Cabinet Features
- Tool-less filter access
- Fully insulated cabinet to reduce heat loss and condensation
- Heavy-gauge galvanized steel base with raised flanges
- Built-in rigging points and flexible electrical entry options
SPECIFICATIONS
| Model Number(s) | DSG0723DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 6.0 Ton |
| Cooling Btu | 69,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 2,100 |
| Refrigerant Type | R-32 |
| Height (Inches) | 43 1/2 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 698 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264343 |
