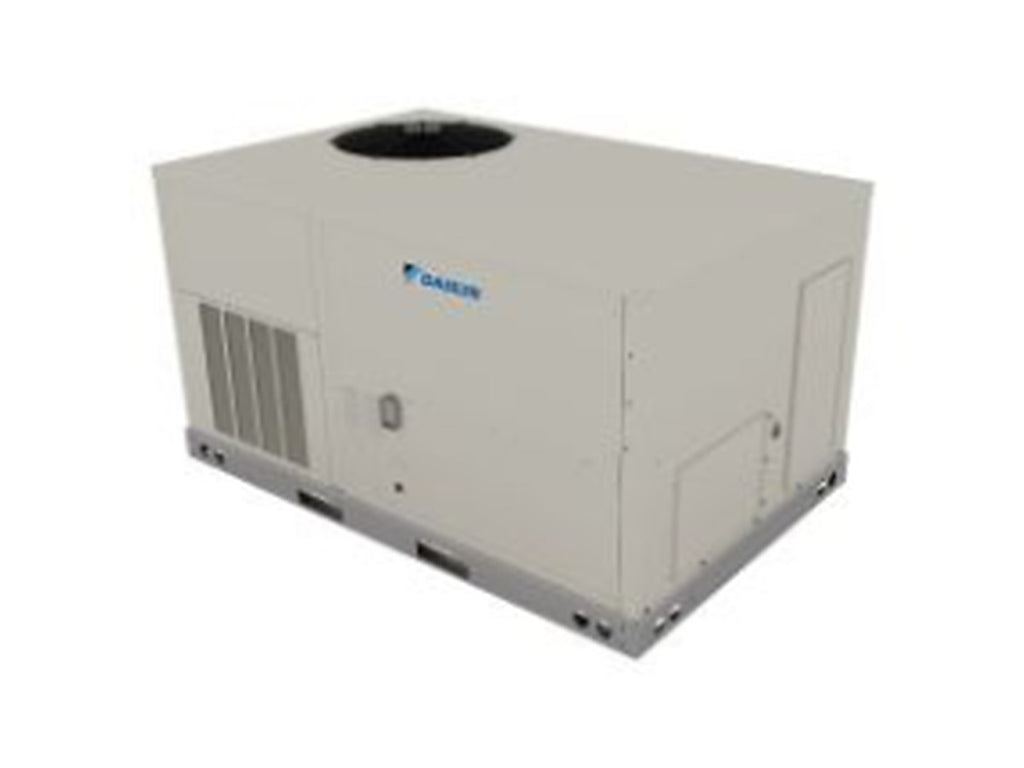

Daikin 6 Ton 16.7 IEER / 11.8 EER R-32 90,000 Btu High-Static Commercial Gas Package Air Conditioner- DSG0723WL00001F
Product Description:
The Daikin DSG0723WL00001F is a 6-ton (≈72,000 BTU) light commercial packaged gas/electric HVAC unit designed for rooftop or ground-mounted installation in medium to large commercial spaces such as offices, clinics, and retail facilities. This self-contained system combines efficient electric cooling with a gas furnace for reliable year-round comfort. It features R-32 refrigerant, a two-stage scroll compressor for enhanced efficiency, and direct-drive fans for quiet, low-maintenance operation. The heavy-gauge galvanized steel cabinet ensures durability and easy servicing.
Quick Facts:
- Model: DSG0723WL00001F
- System Type: Packaged gas/electric HVAC
- Cooling Capacity: ~72,000 BTU (~6 tons)
- Heating Capacity: ~120,000–150,000 BTU/hr (gas furnace)
- Compressor: Two-stage scroll
- Refrigerant: R-32 (low GWP)
- Cooling Efficiency: ~16–17 SEER2 / ~11–12 EER2
- Heating Efficiency: ~80–81% AFUE
- Voltage/Phase: 208–230 V / 3-Phase
- Airflow: ~2,100–2,200 CFM nominal
- Fan Type: Direct-drive blower and condenser fans
- Cabinet: Heavy-gauge galvanized steel with UV-resistant finish
- Installation: Rooftop or ground mount
- Dimensions: ~74″ W × 47-5⁄8″ D × 43-1⁄2″ H
$6,810.00 USD
SKU:
DSG0723WL00001F
ID:
HE101-2245
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors (3–6 ton) with vibration isolation, overload protection, and R32 refrigerant.
- Direct-drive, factory-balanced supply fan with EEM motor and quiet, efficient operation.
- Copper/aluminum draw-through coils; large outdoor coils with microchannel technology.
- ETL-certified heating modules with Wrinkle Bend Technology; 81% AFUE/≥81% efficiency.
- Tubular furnace with in-shot burners, induced draft fan, and full safety controls.
- Integrated 24V controls, single-point power entry, and standard replaceable filters.
Cabinet Features
- Tool-less filter access, fully insulated cabinet.
- Heavy-gauge steel base rail with rigging/lifting holes.
- Flexible electrical access through base or knockout.
SPECIFICATIONS
| Model Number(s) | DSG0723WL00001F |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 6.0 Ton |
| Cooling Btu | 69,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 2,100 |
| Refrigerant Type | R-32 |
| Height (Inches) | 43 1/2 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 690 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264305 |
