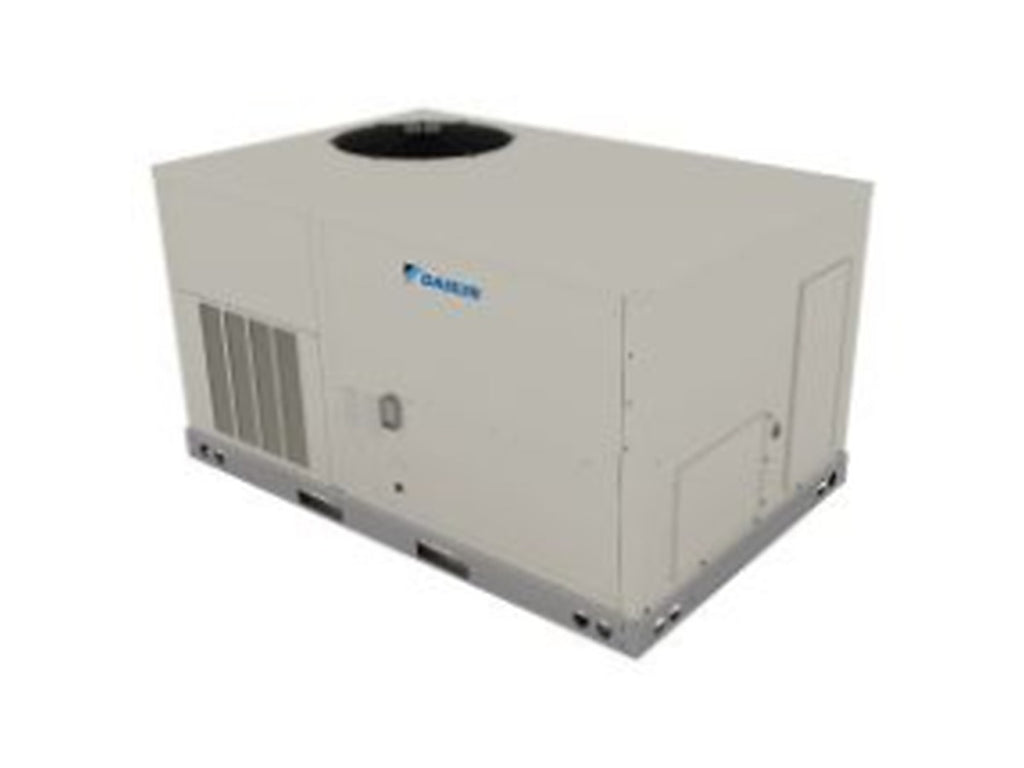

Daikin 7.5 Ton 16 IEER / 12 EER 225,000 Btu Commercial Gas Package Air Conditioner- DSG0903DH00001S
Product Overview:
The Daikin DSG0903DH00001S is a 7.5‑ton light commercial packaged rooftop gas/electric HVAC system designed for reliable year‑round heating and cooling in commercial buildings. It combines cooling capacity and gas heat in a single self‑contained unit with R‑32 refrigerant, direct‑drive components, and rugged construction for efficient operation and long service life.
Quick Facts:
- Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~90,000 BTU/h (7.5 tons)
- Heating Capacity: ~225,000 BTU/h
- Refrigerant: R‑32 (Low‑GWP)
- Efficiency: Up to ~16 IEER / ~12 EER (standard efficiency range)
- Voltage/Phase: 208/230 V, 3‑phase
- Compressor: Single‑stage scroll
- Design: Direct‑drive packaged rooftop unit with multi‑position airflow options
- Application: Commercial heating and cooling for offices, retail, warehouses, etc.
$8,995.00 USD
SKU:
DSG0903DH00001S
ID:
HE101-2247
PRODUCT INFO
Standard Features
- High-performance, low-noise scroll compressors (two single-stage for partial load) with vibration-isolated mounting and internal overload protection.
- Factory-charged with low-GWP R32 refrigerant; high/low-pressure safety switches included.
- Direct-drive EEM indoor fan motors; slide-out curb fan for easy maintenance; high-static drive options for high airflow applications.
- Fans dynamically balanced at the factory; thermal overload protection on motors; no belts, sheaves, or lubrication required.
- Large face area outdoor coils; copper/aluminum draw-through indoor coils; microchannel condenser coils for improved efficiency.
- ETL-certified heating modules with Wrinkle Bend Technology; 81% AFUE (single-phase 5 ton) / ≥81% Thermal Efficiency (3-phase).
- Tubular furnace with in-shot burners, induced draft fan, flame rollout and high-temp safety switches, airflow protection.
- Factory-wired 24V electromechanical controls; single-point power entry; terminal strips; draw-through filter section with standard off-the-shelf filters.
Cabinet Features
- Tool-less filter access for easy maintenance.
- Fully insulated with foil-faced fiberglass to prevent sweating and thermal loss.
- 1-inch raised flanges on supply/return; heavy-gauge steel base rail (≥3.5”) with rigging/lifting holes.
- Electrical access via base or horizontal knockout for field installation.
SPECIFICATIONS
| Model Number(s) | DSG0903DH00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 7.5 Ton |
| Cooling Btu | 90,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Single |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 50 |
| Maximum CFM | 3,020 |
| Refrigerant Type | R-32 |
| Height (Inches) | 54 5/8 |
| Length (Inches) | 93 3/4 |
| Width (Inches) | 60 3/8 |
| Total Shipping Weight (lbs.) | 1,140 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190264411 |
