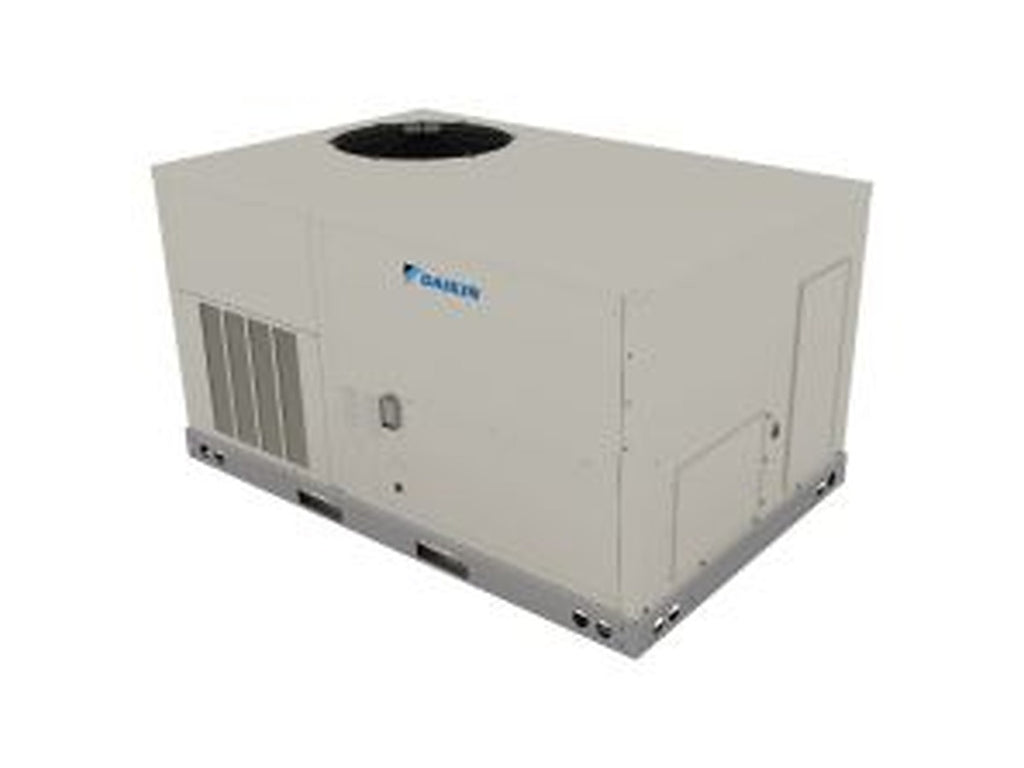

Daikin 12.5 Ton Light Commercial Packaged Gas Electric- 208-230 V 3 Ph R32, DHG1503WH00001F
Package unit buying checks
Daikin 12.5 Ton Light Commercial Packaged Gas Electric- 208-230 V 3 Ph R32, DHG1503WH00001F is part of SupplyShop's package unit HVAC equipment catalog. Use it when comparing packaged air conditioner, packaged heat pump, gas electric package unit and commercial rooftop unit options by tonnage, heating BTU, voltage, phase, airflow and efficiency.
- Package units combine major system components in one cabinet, so verify tonnage, heat type, discharge orientation, curb or pad fit and electrical requirements before ordering.
- For Goodman package unit and commercial HVAC equipment searches, compare cooling-only, heat pump and gas-electric models by application and install constraints.
- Confirm dimensions, service clearances, refrigerant, controls and local code requirements with the installing contractor.
Related SupplyShop paths: package AC units, packaged heat pump units, gas electric package AC units, and package units.
$13,668.00 USD
SKU:
DHG1503WH00001F
ID:
HE101-2171
PRODUCT INFO
Standard Features:
High-performance, low-noise scroll compressors with vibration isolation and internal overload protection.
Factory-charged with R-32 refrigerant; includes safety switches for high/low pressure and airflow.
Direct-drive ECM supply fan with aluminum blades for efficient, quiet operation; dynamically balanced at the factory.
Large face area copper/aluminum coils, microchannel condenser coils, and draw-through indoor coil for optimal cooling and dehumidification.
ETL-certified heating modules with Wrinkle Bend Technology; 81% AFUE (single-phase 5-ton) or ≥81% Thermal Efficiency (three-phase).
Factory-wired controls, single-point power entry, and standard replaceable filters.
Cabinet Features:
Tool-less filter access, fully insulated to prevent sweating and thermal loss.
Heavy-gauge base rails with lifting holes and flexible electrical entry points for easy installation.
SPECIFICATIONS
Brand
Daikin
Model #
DHG1503WH00001F
Refrigerant
R-32
Tonnage
12.5 Ton
Voltage Requirements
208V To 230V
Power Phase ( Single/Three)
3 Ph
Dimensions - (Shipping Unit Height)
57.75 in
Dimensions - (Shipping Unit Depth)
94.50 in
Weight - (Shipping Unit)
1378.090 lb
Power Frequency
60 Hz
Energy Source
Gas
Function Category
Light Commercial Packaged Gas/Electric
