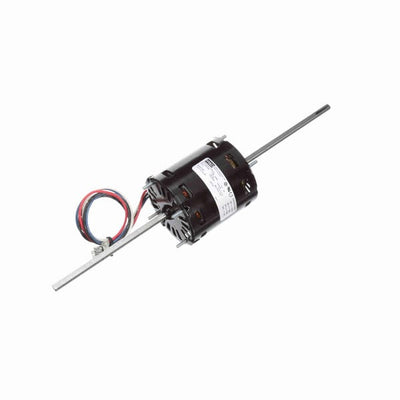

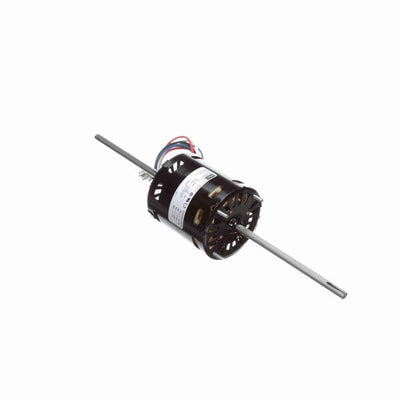

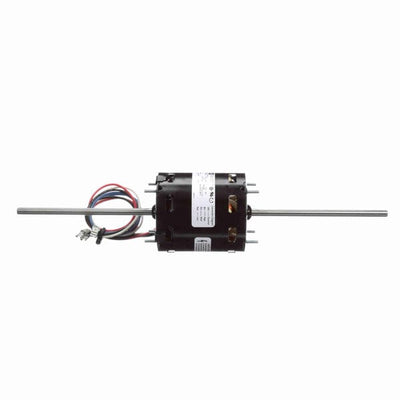

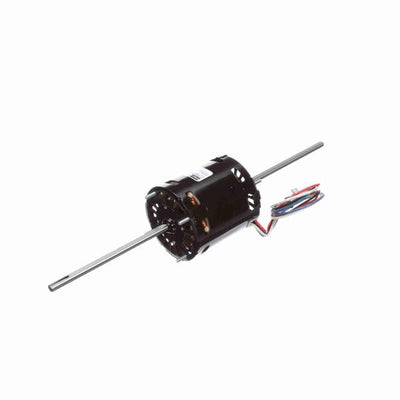

Fasco Window+Room Air Conditioniq, 1550 RPM, 1/10-1/15-1/30 HP, 115 V, 3.3" Diameter, Open Air Over

Availability:
In-Stock
  • Window Air-Conditioning Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Double Shaft with Flat
  • 17" Leads with Flag Terminals
  • Extended Studs Lead and Opposite Lead End

$91.00 USD

Title
Buy Now
SKU:
D367
ID:
HM105-0032

PRODUCT INFO

Applications
Excellent replacements for small window air conditioners

Features
Can be mounted by band or studs, overload protection. Four 3/4" long studs on 2.84" centers. Shaft length is the same on both ends

SPECIFICATIONS

Nameplate Specifications
UPC815585029762
Output HP1/10 - 1/15 - 1/30 Hp
Frequency60 Hz
Current2.7-2.1-1.7 A
Service Factor1
DutyAir Over
Frame3.3
Thermal ProtectionThermally Protected
ULRecognized
Voltage115 V
Speed1550 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeShaded Pole
Poles4
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
3.40 in
Shaft Extension5.75 in
RotationReversible
Frame MaterialSteel
Overall Length15.19 in
Shaft Diameter0.313 in
