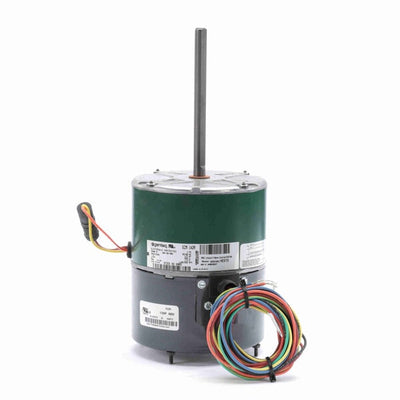

Genteq Condenser Fan ECM Motor, 850/1100 RPM, 1/3 HP, 460 V, 48 Frame, Totally Enclosed Air Over

Availability:
Out-Stock
  • Evergreen OM - Retrofit Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Electronically Commutated (ECM)
  • Electronically Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 55" Leads
  • Belly Band

$432.00 USD

Sold Out

SKU:
6903
ID:
HM104-1S9-0005

SPECIFICATIONS

Nameplate Specifications
UPC815585023906
Output HP1/3 Hp
Frequency60 Hz
Current1.6 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionNo
ULRecognized
Voltage460 V
Speed850/1100 rpm
Phase1
Insulation ClassB
EnclosureTotally Enclosed Air Over
Ambient Temperature60 °C
CSAN
Technical Specifications

Electrical TypeElectronically Commutated Motor
Poles12
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeFlat
Frame Length3.07 in
Shaft Extension6.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.82 in
Shaft Diameter0.500 in
