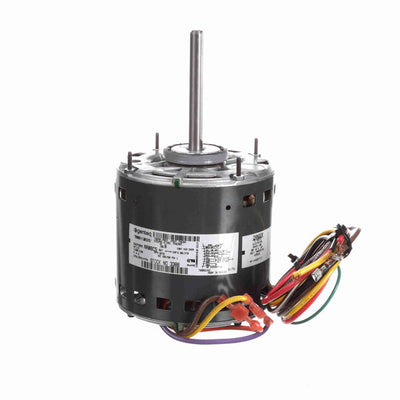

Genteq Direct Drive Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads
  • Resilient Ring Mounting, Belly Band

$267.00 USD

Title
Buy Now
SKU:
3388
ID:
HM106-1S9-0119

PRODUCT INFO

Applications
Unit heaters, furnace blowers, unit coolers, fans and blowers

Features
Automatic thermal protection. Electrically reversible rotation. All-angle sleeve bearing. Mounting holes in shell for capacitor bracket. Continuous air over. Color coded leads, 2- and 3-speed. Capacitor not included

SPECIFICATIONS

Nameplate Specifications
UPC815585020769
Output HP1/2 Hp
Frequency60 Hz
Current4.3 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
4.57 in
Shaft Extension4.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length
10.14 in
Shaft Diameter0.500 in
