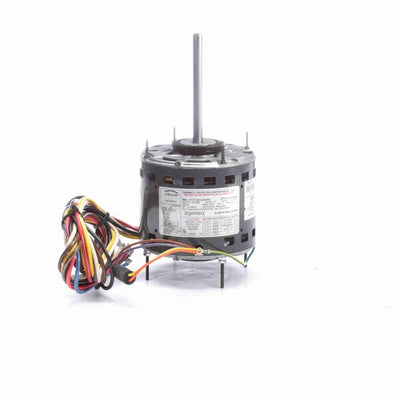

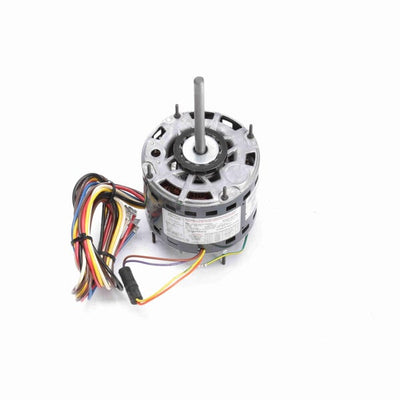

Genteq Direct Drive Motor, 1075 RPM, 1/2 HP, 208-230 V, 48 Frame, Open Air Over

Availability:
In-Stock
  • Life-Line - Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 38" Leads
  • Resilient Ring Mounting, Extended Clampbolts

$261.00 USD

Title
Buy Now
SKU:
3464
ID:
HM106-1S9-0120

PRODUCT INFO

Applications
Designed for continuous air over applications such as direct drive residential, commercial and industrial air conditioners, fan and blowers

Features
Automatic thermal protection. All-angle mount. Sleeve or ball bearing. 60°C ambient. Reversible rotation. Full flatted shaft. Rheem mounting holes in shell, mounting hardware included. Capacitor requirement noted on motor label

SPECIFICATIONS

Nameplate Specifications
UPC815585020417
Output HP1/2 Hp
Frequency60 Hz
Current2.70 A
Service Factor1
DutyContinuous Air Over
Frame48
Thermal ProtectionThermally Protected
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Air Over
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingResilient Rings
Opp Drive End BearingSleeve
Shaft TypeFlat
Frame Length
4.07 in
Shaft Extension5.00 in
RotationReversible
Frame MaterialRolled Steel
Overall Length
10.64 in
Shaft Diameter0.500 in
