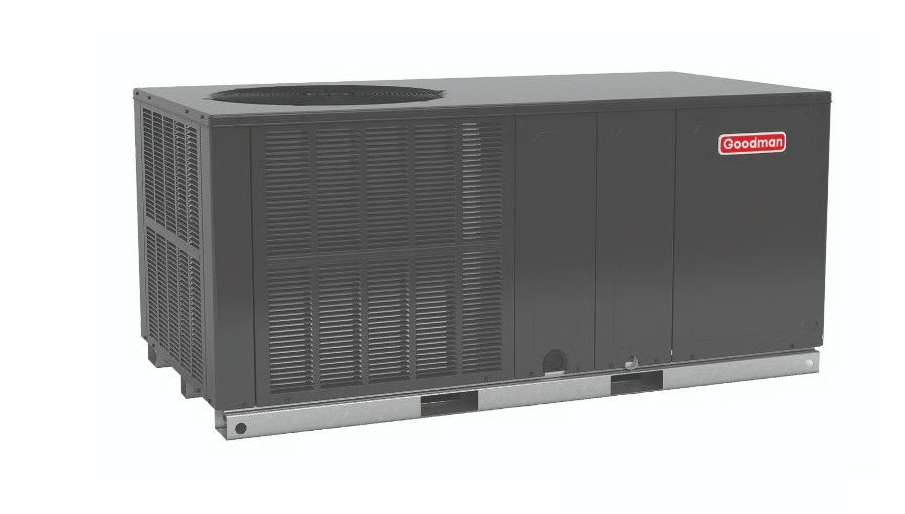

Goodman 3.5 Ton 13.4 SEER2 Package Air Conditioner Unit R32 Horizontal -GPCH34231
Goodman GPCH34231 3.5 ton 13.4 SEER2 packaged air conditioner is an outdoor cooling-only packaged unit with horizontal discharge for compatible residential and light-commercial applications.
Product highlights
- 3.5 ton nominal cooling capacity
- 13.4 SEER2 efficiency
- Cooling-only packaged configuration
- Horizontal discharge
- Factory-built outdoor cabinet
Fit note: Confirm electrical service, cooling load, duct orientation, airflow, controls, curb/site requirements, and installation compatibility before ordering.
$3,918.00 USD
PRODUCT INFO
3.5 Ton Capacity
With a cooling capacity of 3.5 tons, the Goodman GPCH34231 is well-suited for medium-sized homes in average climates. While this is a cooling-only packaged unit, a compatible electric heat kit can be purchased separately and field-installed to provide straight electric heating when needed.
13.4 SEER2 Efficiency
Rated at 13.4 SEER2, the GPCH34231 meets standard efficiency requirements accepted across all mainland U.S. states. Each increase in SEER2 rating represents approximately 5–7% improved energy efficiency, helping reduce electricity usage and long-term operating costs.
Warranty Coverage
Goodman backs the GPCH34231 with a 10-year parts limited warranty when the unit is properly installed in accordance with state and local codes and registered online with the manufacturer.
Durability and Reliability
Designed for long-term performance, the GPCH34231 features a heavy-gauge galvanized steel cabinet with enhanced coil protection to help resist corrosion and environmental exposure. The fully enclosed, permanently lubricated fan motor supports reliable, long-lasting operation.
Installation and Maintenance
Like all Goodman packaged units, the GPCH34231 is factory charged and tested, eliminating the need for additional refrigerant during installation and helping lower upfront labor costs. The fully insulated blower compartment includes convenient access panels for simplified service and maintenance.
Comfort-Focused Design
Goodman is committed to delivering dependable comfort at an affordable price. The GPCH34231 reflects this commitment with cabinet insulation that helps reduce operating sound levels, providing quiet, efficient, and dependable cooling performance.
SPECIFICATIONS
| SKU | GPCH34231 |
|---|---|
| Weight (in lbs) | 390.000000 |
| AHRI Certificate Number | 217486119 |
| Brand/Manufacturer | Goodman |
| Cooling BTU | 39,000 BTU |
| Maximum CFM | 1,300 |
| Decibel Level (dBA) | 76 decibels |
| Configuration | Horizontal |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Two Stage |
| Compressor Type | Scroll |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size | 35 amps |
| Min. Breaker Size | 24.8 amps |
| Tonnage | 3.5 Ton |
| Height | 22" |
| Width | 66" |
| Depth | 34" |
| Warranty | 10 Years with Online Registration |
