Goodman 3 Ton Cooling; 60,000 BTU - Heating Gas/Electric Package Unit; 14 SEER; 81% AFUE
PRODUCT INFO

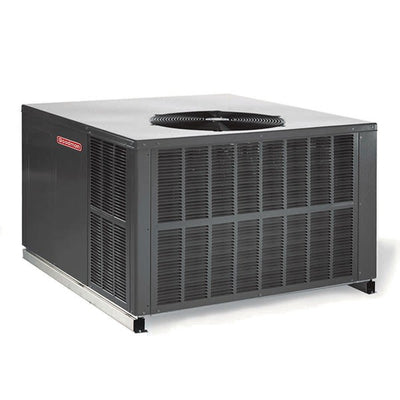

The GPG14M is a packaged gas/electric central air system. It combines a gas-fired furnace, air conditioning condenser, evaporator coil, and ECM blower into a single unit. The GPG1436060M41's heat exchanger and coil feature Goodman's superior designs that ensure efficient operations whether your home needs heating or cooling. Replacing your split system with a GPG14M package is a breeze. This unit is equipped for either downflow or horizontal airflow and it features access panels to expedite installation. Сomply with California Low NOx emission standards.
Aluminized-Steel Heat Exchanger
The GPG14M's furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
High-Efficiency Coils
The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
Secure Design
The cabinet of the GPG1436060M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
Filter Drier
A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.
Quiet Comfort
A sound insulated blower compartment means that the GPG1436060M41 provides year-round comfort without disrupting your home.
Extended Warranty
Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.
SPECIFICATIONS
General Information | |
Type | Gas/Electric Packaged Unit |
Product Line | GPG14 |
Operating Mode | Heating and Cooling |
Fuel Type | Natural Gas |
Modulating/Staging | Single Stage |
Refrigerant Type | R-410A |
Blower Motor | Multi-Speed |
Motor Type | ECM |
Configuration | Downflow/Horizontal |
Installation Location | Outdoor |
Gas Conversion Kit | Available |
Compressor Stages | Single |
DOE Regional Compliance | Nationwide |
Installation Available | Yes |
UPC | 663051541344 |
Performance | |
AFUE | 81 % |
Capacity | 3.0 Tons |
Cooling Capacity | 34000BTU |
Heating Capacity | 60000 BTU |
SEER | 14.0 |
EER | 11.0 |
Maximum Air Flow | 1440CFM |
Minimum Air Flow | 1180 CFM |
Maximum Sound Level | 78 dB |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
ISO Certified | Yes |
AHRI Reference Number | 7505445 |
Dimensions | |
Product Height | 34 3/4 Inches |
Product Width | 47 Inches |
Product Depth | 51 Inches |
Product Weight | 453 Pounds |
Shipping Weight | 475 Pounds |
