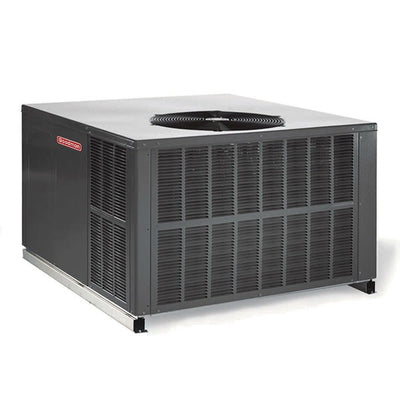

Goodman 3 Ton Cooling; 80,000 BTU - Heating Gas/Electric Package Unit; 14 SEER; 81% AFUE

Availability:
Out-Stock
Goodman - GPG14M - GPG1436080M41 - 3 Ton Cooling - 34,200 BTU/Hr Cooling - 80,000 BTU/Hr Heating - Packaged Gas/Electric Central Heating and Cooling System - Natural Gas - 14 SEER - 81% AFUE - Downflow/Horizontal - 208-230 V - 1 Phase - 60 H

PRODUCT INFO

 The GPG14M is a packaged gas/electric central air system. It combines a gas-fired furnace, air conditioning condenser, evaporator coil, and ECM blower into a single unit. The GPG1436080M41's heat exchanger and coil feature Goodman's superior designs that ensure efficient operations whether your home needs heating or cooling. Replacing your split system with a GPG14M package is a breeze. This unit is equipped for either downflow or horizontal airflow and it features access panels to expedite installation. Сomply with California Low NOx emission standards

Aluminized-Steel Heat Exchanger

The GPG14M's furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

High-Efficiency Coils

The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer

Secure Design

The cabinet of the GPG1436080M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.

Filter Drier

A filter drier is installed in the liquid line of this packaged unit's air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the condenser.

Quiet Comfort

A sound insulated blower compartment means that the GPG1436080M41 provides year-round comfort without disrupting your home.

Extended Warranty

Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty.

SPECIFICATIONS

General Information
TypeGas/Electric Packaged Unit
Product LineGPG14
Operating ModeHeating and Cooling
Fuel TypeNatural Gas
Modulating/StagingSingle Stage
Refrigerant TypeR-410A
Blower MotorMulti-Speed
Motor TypeECM
ConfigurationDownflow/Horizontal
Installation LocationOutdoor
Gas Conversion KitAvailable
Compressor StagesSingle
DOE Regional ComplianceNationwide
Installation AvailableYes
UPC663051541351



Performance
AFUE 81 %
Capacity 3.0 Tons
Cooling Capacity34000 BTU
Heating Capacity80000 BTU
SEER14.0
EER11.0
Maximum Air Flow1440 CFM
Minimum Air Flow1180 CFM
Maximum Sound Level 78 dB



Certifications
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number7505445



Dimensions
Product Height34 3/4 Inches
Product Width47 Inches
Product Depth51 Inches
Product Weight458 Pounds
Shipping Weight480 Pounds
