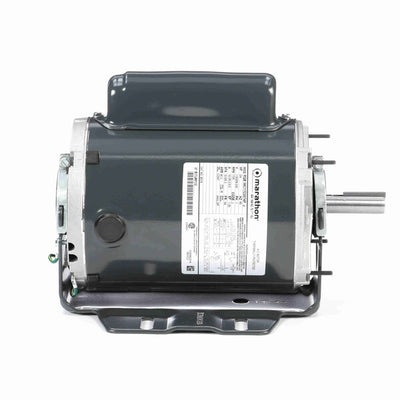

Marathon Belt Drive Motor, 1725 RPM, 3/4 HP, 115/208-230 V, 56 Frame, Open Drip Proof

Availability:
In-Stock
  • Heavy gauge steel frame and base
  • Ball bearings
  • 5/8" thru-bolts, shaft end
  • Consult factory for accessory kit and/or modification selection

$271.50 USD

Title
Buy Now
SKU:
B319
ID:
HM109-0004

PRODUCT INFO

Applications
For use in residential and commercial fan and blowers applications where high starting torque is required

Features
Automatic reset overload protected.Continuous duty ball bearing motors designed for belt driven fans and blowers, roof ventilators and exhaust fans.60 Hz, permanently lubricated, open dripproof, 40°C ambient.Reversible rotation.Resilient base.Keyed 5/8" shaft except as noted.NEMA service factor

SPECIFICATIONS

Nameplate Specifications
UPC722856023193
Output HP3/4 Hp
Frequency60 Hz
Current10.0/5.2-5.0 A
Service Factor1.25
Efficiency
70.1 %
DutyContinuous
Frame56
Thermal ProtectionAutomatic
ULRecognized
Voltage115/208-230 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureDrip Proof
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeCapacitor Start Induction Run
Poles4
MountingResilient Base - Extended Studs
Opp Drive End BearingBall
Shaft Extension1.87 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length10.72 in
Shaft Diameter0.625 in
