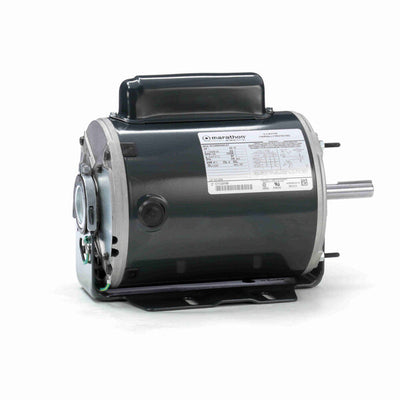

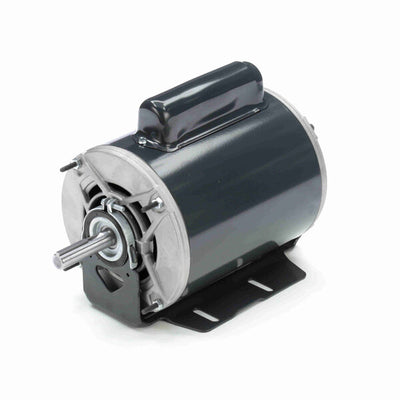

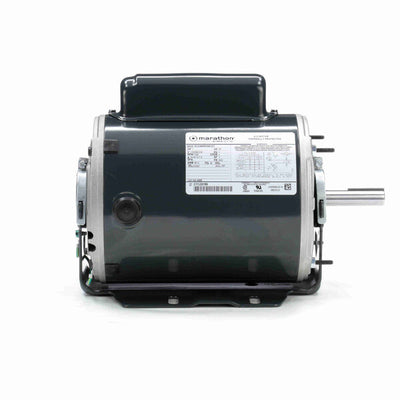

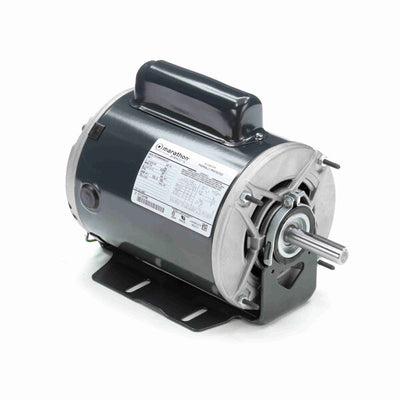

Marathon Belt Drive Motor, 1725 RPM, 1 HP, 115/208-230 V, 56Z Frame, Open Drip Proof

Availability:
In-Stock
  • Heavy gauge steel frame and base
  • Ball bearings
  • Shaft extension 2-1/4" long by 5/8" diameter

$296.50 USD

Title
Buy Now
SKU:
4688
ID:
HM109-0003

PRODUCT INFO

Applications
For use in residential and commercial fan and blowers applications where high starting torque is required

Features
Automatic reset overload protected.Continuous duty ball bearing motors designed for belt driven fans and blowers, roof ventilators and exhaust fans.60 Hz, permanently lubricated, open dripproof, 40°C ambient.Reversible rotation.Resilient base.Keyed 5/8" shaft except as noted.NEMA service factor

SPECIFICATIONS

Nameplate Specifications
UPC722856040282
Output HP1 Hp
Frequency60 Hz
Current14.4,7.2-7.2 A
Service Factor1
Efficiency
69 %
DutyContinuous
Frame56Z
Thermal ProtectionAutomatic
ULRecognized
Voltage115/208-230 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureDrip Proof
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeCapacitor Start Capacitor Run
Poles4
MountingResilient Base
Opp Drive End BearingBall
Frame Length
7.15 in
Shaft Extension2.25 in
RotationCounterclockwise/Clockwise
Frame MaterialRolled Steel
Overall Length10.77 in
Shaft Diameter0.630 in
