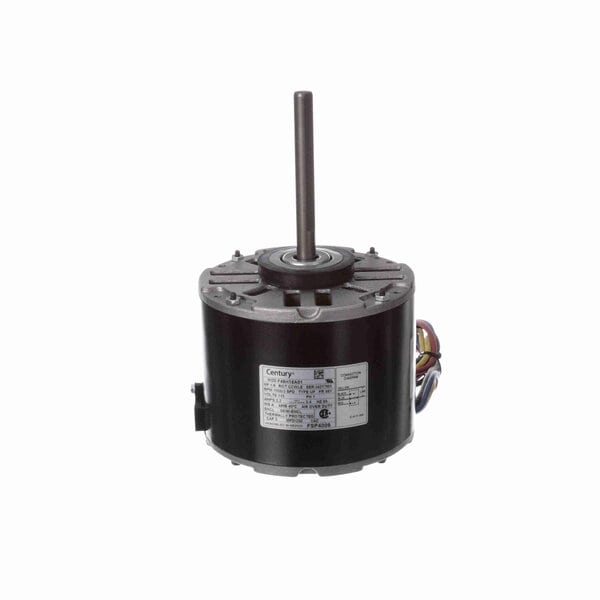

Century Direct Drive Motor, 1050 RPM, 1/8 HP, 115 V, 48 Frame, Semi Enclosed
- Furnace - Air Handler - Fan Coil Motor
- Permanent Split Capacitor
- Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads with Quick Connect Terminals
- Resilient Ring Mount, Belly Band Mount
- HM106-0084 replaces the following brands and item numbers: for shaded pole direct drive fans and furnace blowers
$332.85 USD
PRODUCT INFO
Applications
Replacements for shaded pole direct drive fans and furnace blowers
Features
Automatic thermal protection. 2-1/2" rings for resilient mounting |Internally mounted capacitor simplifies wiring
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021618 |
| Output HP | 1/8 Hp |
| Frequency | 60 Hz |
| Current | 2.2 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 115 V |
| Speed | 1050 rpm |
| Phase | 1 |
| Insulation Class | A |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Rings |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Flat |
| Frame Length: | 3.75 in |
| Shaft Extension | 4.75 in |
| Rotation | Counterclockwise Lead End |
| Frame Material | Rolled Steel |
| Overall Length | 9.61 in |
| Shaft Diameter | 0.500 in |
