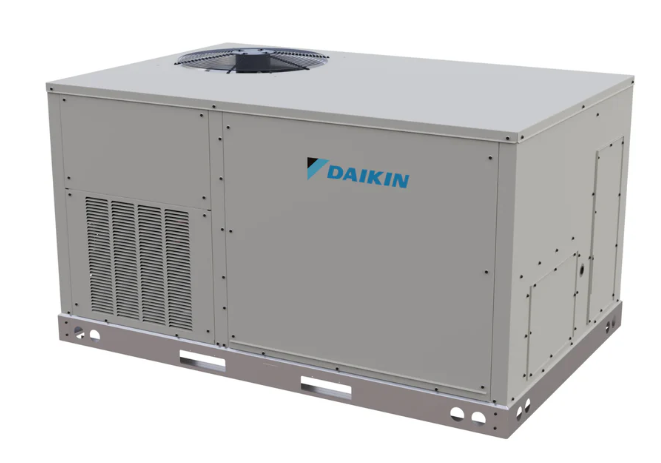

Daikin 4 Ton 13.7 SEER2 R-32 / 11.8 EER2 R-32 Commercial Package Air Conditioner- DSC0483D000001S
Product Overview
The Daikin DSC0483D000001S is a 4‑ton (≈46,000 BTU) light commercial packaged rooftop air conditioner designed for cooling applications in commercial environments such as offices, retail spaces, warehouses, and light industrial buildings. It’s part of Daikin’s DSC series, which focuses on reliable, energy‑efficient cooling in a compact, self‑contained outdoor unit.
Key Features
-
Cooling Capacity: ~46,000 BTU / 4 tons — suitable for light commercial cooling loads.
-
Refrigerant: Uses eco‑friendly R‑32, which has a lower global warming potential.
-
Compressor: Single‑stage scroll compressor for dependable cooling.
-
Efficiency: ~13.7 SEER2 and ~11.8 EER2 — balances efficiency with operating cost savings.
-
Blower & Airflow: Direct‑drive design with robust airflow (nominal ~1600 CFM).
-
Electrical: 208–230 V / 3‑phase / 60 Hz — typical for commercial electrical systems.
-
Durability: Built with a rugged, heavy‑gauge steel cabinet to withstand outdoor conditions.
-
Installation: Designed for rooftop or ground mount installations with standard curb compatibility.
$4,325.00 USD
SKU:
DSC0483D000001S
ID:
HE101-2221
PRODUCT INFO
Standard Features:
Low-noise, high-performance scroll compressors with vibration isolation.
Factory-charged with eco-friendly R‑32 refrigerant; single-stage (3–5 ton) or two-stage (6 ton) compressors.
Direct-drive SWSI airfoil fan with ball-bearing ECM motor for quiet, efficient operation.
Indoor draw-through coils with copper tube/aluminum fin construction; outdoor coils use microchannel technology.
Thermal overload and internal protection for compressors and motors.
Factory-wired 24V controls with single-point power entry and terminal strips for easy installation.
Draw-through filter section with standard-size replaceable filters.
Cabinet Features:
Tool-less filter access and fully insulated to prevent sweating and thermal losses.
Raised flanges around supply/return; heavy-gauge galvanized steel perimeter base for structural strength.
Base includes holes for rigging/lifting; electrical access via base or horizontal knockout.
SPECIFICATIONS
| Model Number(s) | DSC0483D000001S |
| Brand | Daikin |
| Type | Air Conditioning |
| Ton | 4.0 Ton |
| Cooling Btu | 46,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 35 |
| Maximum CFM | 1,600 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 572 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190262912 |
