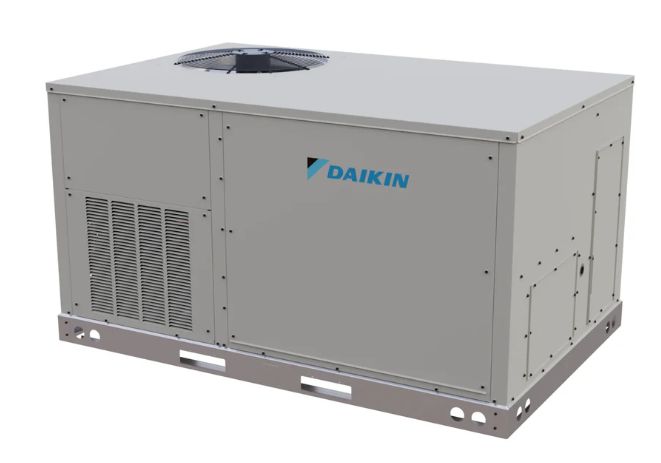

Daikin 6 Ton 18.6 IEER / 12.5 EER R-32 125,000 Btu Commercial Gas Package Air Conditioner- DHG0723DM00001S
Product Overview
The Daikin DHG0723DM00001S is a 6‑ton light commercial packaged gas/electric rooftop HVAC unit from the Daikin DHG series, engineered to deliver reliable year‑round comfort for commercial environments such as offices, retail stores, schools, and warehouses. This self‑contained rooftop system combines efficient electric cooling with medium‑range natural gas heating in a single cabinet, simplifying installation and conserving indoor space.
It features R‑32 refrigerant, a two‑stage scroll compressor, and a multi‑speed ECM blower motor for energy‑efficient operation and improved part‑load performance. The insulated cabinet and convertible airflow design support flexible rooftop or ground‑mounted installations while maintaining quiet, dependable operation.
Quick Facts
-
Model: DHG0723DM00001S
-
Nominal Cooling Capacity: ~72,000 BTU / 6 Tons
-
Cooling Efficiency: ~16.2 SEER2 / ~12.2 EER2
-
Heating Capacity: ~80,000 BTU input (~65,000 BTU output)
-
Thermal Efficiency: ~81% AFUE
-
Compressor: Two‑Stage Scroll
-
TRefrigerant: R‑32 (low GWP)
-
Voltage/Phase: 208–230 V / 3‑Phase
-
Airflow: ~1,900–2,200 CFM nominal (varies by configuration)
-
Installation: Rooftop or ground mount with convertible airflow
-
Warranty: Typically ~5‑year parts / ~20‑year heat exchanger (varies by region)
$6,637.00 USD
SKU:
DHG0723DM00001S
ID:
HE101-2205
PRODUCT INFO
Standard Features:
Low-noise, high-performance scroll compressors with vibration-isolated mounting.
Refrigeration circuit with high/low pressure safety switches; factory-charged with low-GWP R32 refrigerant.
Two-stage scroll compressor for partial load; located outside condenser to avoid air bypass; internal overload protection.
Direct-drive airfoil SWSI supply fan with ECM motor, aluminum blades, and factory dynamic balancing for quiet, efficient operation.
Draw-through indoor coil with seamless copper tubes and aluminum fins; factory pressure-tested for leak integrity.
Large face-area outdoor coils with microchannel heat exchanger for better performance and reduced refrigerant load.
ETL-certified heating modules with Wrinkle Bend Technology for improved heat transfer and durability; 81% AFUE/T.E. for gas models.
Tubular furnace with in-shot gas burners, induced draft fan, flame roll-out and airflow safety switches; fully integrated heating control.
Factory-wired 24V electromechanical controls; single-point power entry and terminal strips for easy installation.
Draw-through filter section using standard off-the-shelf filters for improved air quality and maintenance.
Cabinet Features:
Tool-less filter access for easy maintenance.
Fully insulated cabinet with foil-faced fiberglass to prevent sweating and thermal losses.
1-inch raised flanges around supply and return.
Heavy-gauge galvanized steel perimeter base rail (≥3.5 inches) with holes for rigging and forklift lifting.
Electrical access via base or horizontal knockout for easy field installation.
SPECIFICATIONS
| Model Number(s) | DHG0723DM00001S |
| Brand | Daikin |
| Type | Gas Heat |
| Ton | 6.0 Ton |
| Cooling Btu | 69,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Afue | 81% |
| Voltage | 208/230V |
| Electrical Phase(s) | 3-Phase |
| Amp(s) | 40 |
| Maximum CFM | 2,100 |
| Refrigerant Type | R-32 |
| Height (Inches) | 53 3/4 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 698 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190265425 |
