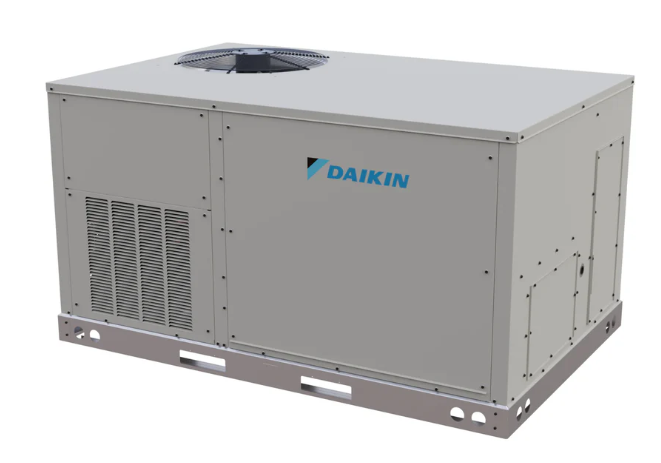

Daikin 5 Ton 13.7 SEER2 R-32 / 11.8 EER2 R-32 Commercial Package Air Conditioner- DSC0601D000001S
Product Overview: The Daikin DSC0601D000001S is a 5-ton (≈60,000 BTU) light commercial packaged rooftop air conditioner from the DSC series. Designed for commercial spaces like offices, retail stores, warehouses, and light industrial buildings, it delivers reliable, energy-efficient cooling. This self-contained outdoor unit features R‑32 refrigerant, a single-stage scroll compressor, and a direct-drive blower for quiet operation. Its heavy-gauge steel cabinet ensures durability in outdoor conditions, and it is compatible with standard rooftop curbs or ground-mount installations.
Quick Facts:
-
Model: DSC0601D000001S
-
Cooling Capacity: ~60,000 BTU / 5 tons
-
Compressor: Single-Stage Scroll
-
Refrigerant: R‑32 (low GWP)
-
Efficiency: ~13.7 SEER2 / ~11.8 EER2
-
Airflow: ~2,000 CFM nominal
-
Voltage/Phase: 208–230 V / 3-Phase
-
Installation: Rooftop or ground mount
-
Durability: Rugged steel cabinet suitable for outdoor use
$4,349.00 USD
SKU:
DSC0601D000001S
ID:
HE101-2222
PRODUCT INFO
Standard Features:
High-performance, low-noise scroll compressors (single-stage 3–5 ton, two-stage 6 ton) with overload protection, mounted on vibration-isolating grommets.
Factory-charged with eco-friendly R‑32 refrigerant; high/low pressure safety switches included.
Direct-drive airfoil fan with aluminum blades and ball-bearing EEM motor for efficient, quiet operation and low maintenance.
Draw-through indoor coil with copper tubes/aluminum fins, factory pressure-tested for efficiency and leak protection.
Microchannel condenser coils for improved performance and reduced refrigerant load.
Factory-wired 24V electromechanical controls; single-point power entry and terminal strips for easy installation.
Draw-through filter section with standard off-the-shelf filters for easy maintenance.
Cabinet Features:
Tool-less filter access and fully insulated with foil-faced fiberglass to prevent sweating and thermal loss.
Raised 1" supply/return flanges; heavy-gauge galvanized steel base rails (≥3.5") for structural strength, forklift/rigging compatible.
Electrical access via base or horizontal knockout for field installation flexibility.
SPECIFICATIONS
| Model Number(s) | DSC0601D000001S |
| Brand | Daikin |
| Type | Air Conditioning |
| Ton | 5.0 Ton |
| Cooling Btu | 57,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Amp(s) | 60 |
| Maximum CFM | 1,860 |
| Refrigerant Type | R-32 |
| Height (Inches) | 39 7/8 |
| Length (Inches) | 74 |
| Width (Inches) | 48 5/16 |
| Total Shipping Weight (lbs.) | 582 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 633190262936 |
