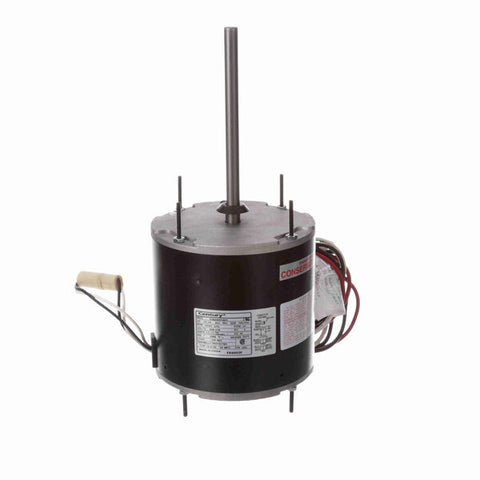

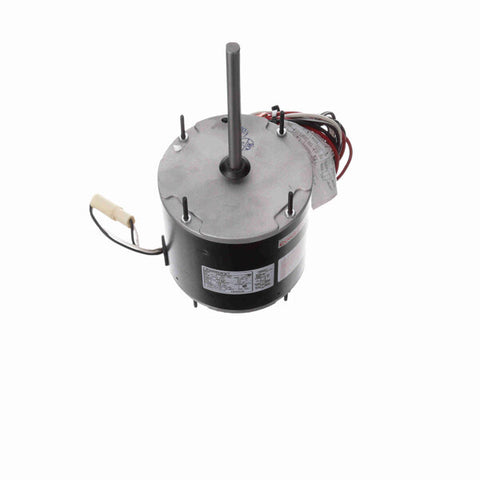

Century Condenser Fan Motor, 1075 RPM, 1/2-1/5 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over
- MasterFit Pro - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 12.5or 10 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
$237.30 USD
PRODUCT INFO
Features
All purpose capacitor included. Mounts by belly band, thru-bolts or shell holes. Extended thru bolts. Rheem mounting holes in shell. 2 speed
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674053107 |
| Output HP | 1/2,1/4 Hp |
| Frequency | 60 Hz |
| Current | 3.2,1.6 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Double Flat |
| Frame Length | 4.75 in |
| Shaft Extension | 6.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.74 in |
| Shaft Diameter | 0.500 in |
