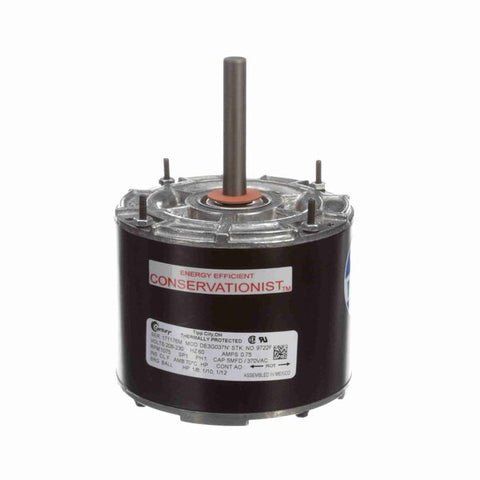

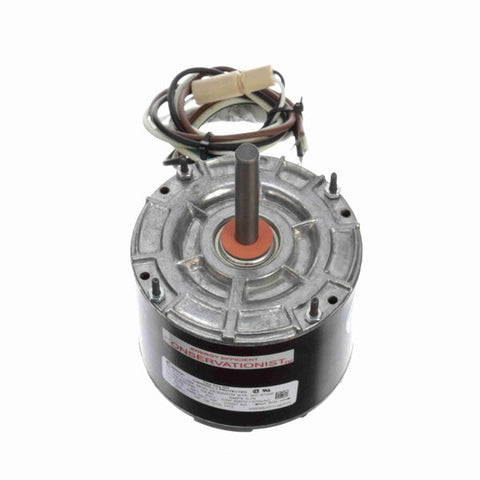

Century Condenser Fan Motor, 1075 RPM, 1/8-1/10-1/12 HP, 208-230 V, 42 Frame, Totally Enclosed Air Over
- MultiFit - Condenser Fan Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads
- Extended Studs Shaft End and Lead End
$198.45 USD
PRODUCT INFO
Features
Multiple mounting configurations with removable studs providing 3 bolt circles. 60° max ambient. Includes water resistant rubber grommets for lead openings. Reversible rotation. 36" leads. Double sealed ball bearings
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674072030 |
| Output HP | 1/8, 1/10, 1/12 Hp |
| Frequency | 60 Hz |
| Current | 0.75 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 42 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 208-230 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.00 in |
| Shaft Extension | 3.0 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 7.00 in |
| Shaft Diameter | 0.500 in |
