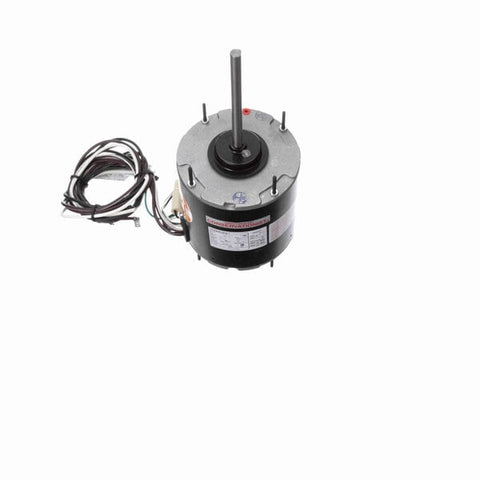

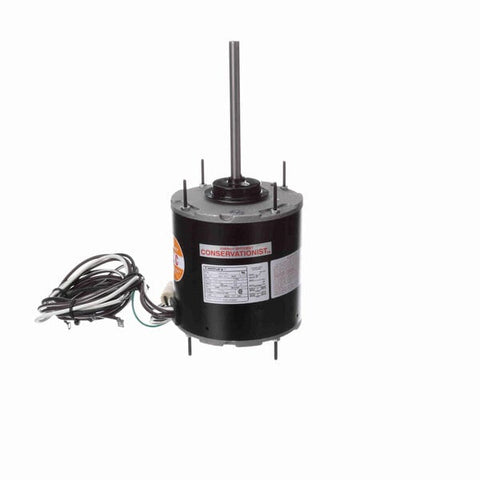

Century Condenser Fan Motor, 1075 RPM, 3/4 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

Availability:
In-Stock
  • HeatMaster - Condenser Fan - Heat Pump - Refrigeration Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band Mount
  • HM101-0027 replaces the following brands and item numbers: motors in units by Carrier/Bryant and others

$256.20 USD

Title
Buy Now
SKU:
FSE1076SF
ID:
HM101-1S9-0027

PRODUCT INFO

Applications
Replaces motors in units by Carrier/Bryant and others

Features
70°C ambient. Three year warranty. UL and CSA approved Class F insulation achieves superior dielectric strength for long thermal life. Single-speed. Sleeve or ball bearing. Large high-temperature nylon glass-filled shaft slinger for bearing protection; keeps water and dirt out of motor bearings. 36” color coded high temperature leads for easy identification and installation. Easy to remove drain plugs in both end frames allow accumulated condensation to be expelled quickly

SPECIFICATIONS

Nameplate Specifications
UPC786674021571
Output HP3/4 Hp
Frequency60 Hz
Current5.1 A
Service Factor1
DutyAir Over
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassF
EnclosureTotally Enclosed
Ambient Temperature70 °C
CSAY
Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingSleeve
Shaft TypeDouble Flat
Frame Length5.00 in
Shaft Extension6.5 in
RotationReversible
Frame MaterialRolled Steel
Overall Length12.99 in
Shaft Diameter0.500 in
