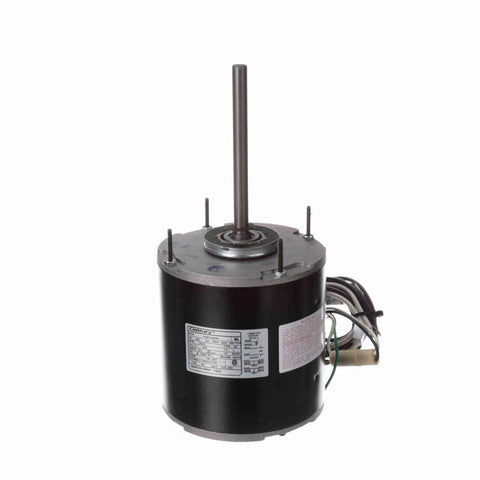

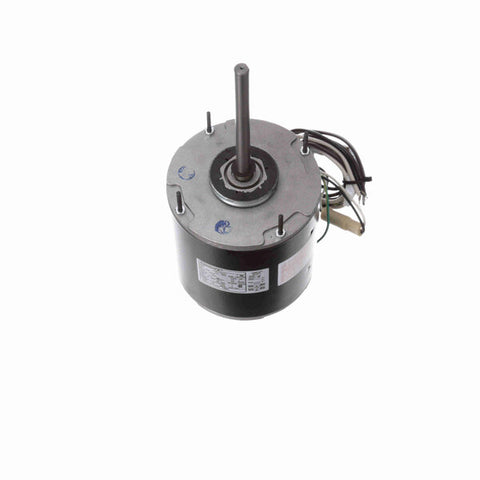

Century Condenser Fan Motor, 1075 RPM, 3/4 HP, 460 V, 48 Frame, Semi Enclosed
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 23" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
$414.75 USD
PRODUCT INFO
Applications
Horizontal or vertical shaft up applications
Features
Automatic thermal protection Short body design Electrically reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674009944 |
| Output HP | 3/4 Hp |
| Frequency | 50 Hz |
| Current | 2.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1075 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 6 |
| Mounting | Resilient Ring/Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 5.00 in |
| Shaft Extension | 6.0 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.10 in |
| Shaft Diameter | 0.500 in |
