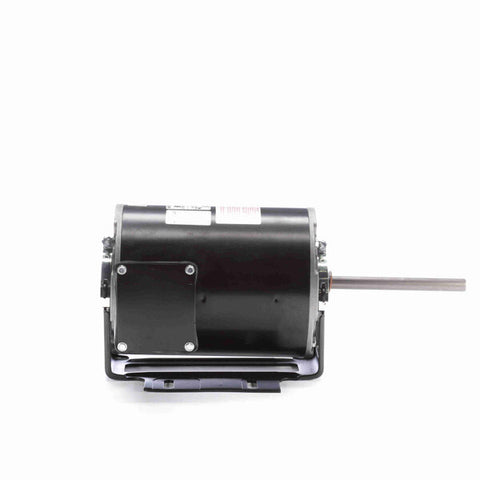

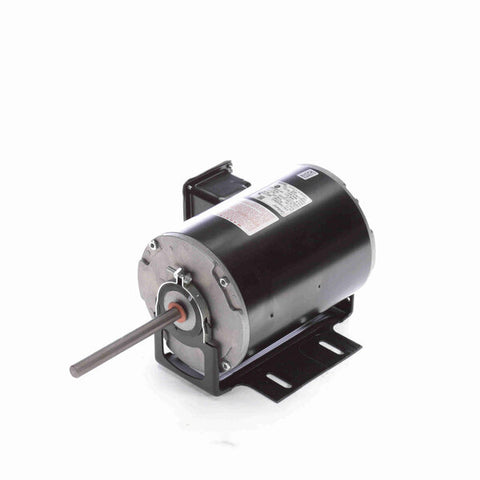

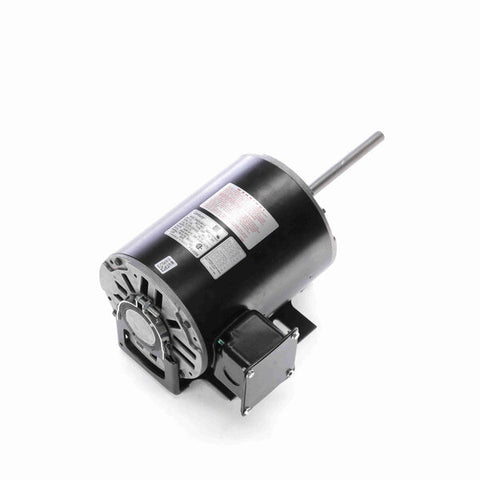

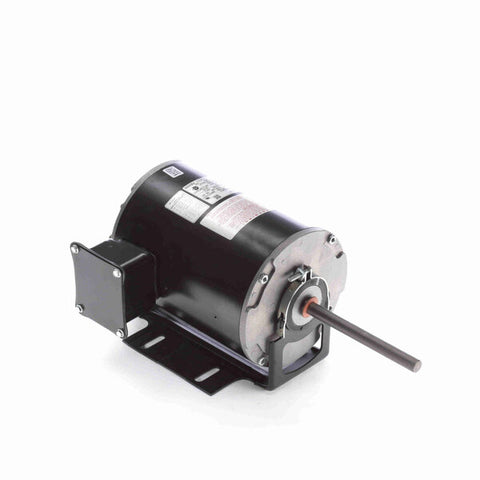

Century Condenser Fan Motor, 1140 RPM, 1/2 HP, 208-230/460 V, 56 Frame, Semi Enclosed
- Condenser Fan Motor
- Polyphase
- Thermally Protected
- Open Lead End End-Frame, Enclosed Shell and Shaft End End-Frame, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- Conduit Box
- Resilient Base
- Phase 3
$626.85 USD
PRODUCT INFO
Applications
For shaft up or horizontal applications, short body design
Features
Automatic thermal protection. Heavy-duty ball bearing. Class B. 60°C ambient. Extended thru-bolts and bearing hubs for resilient rings for different types of mounting. Electrically reversible.
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674020314 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 2.5/1.25 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 56Y |
| Thermal Protection | Automatic |
| UL | No |
| Voltage | 208-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 60 °C |
| CSA | N |
| Technical Specifications | |
| Electrical Type | Three Phase |
| Poles | 6 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 6.75 in |
| Shaft Extension | 5.7 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 13.41 in |
| Shaft Diameter | 0.500 in |
