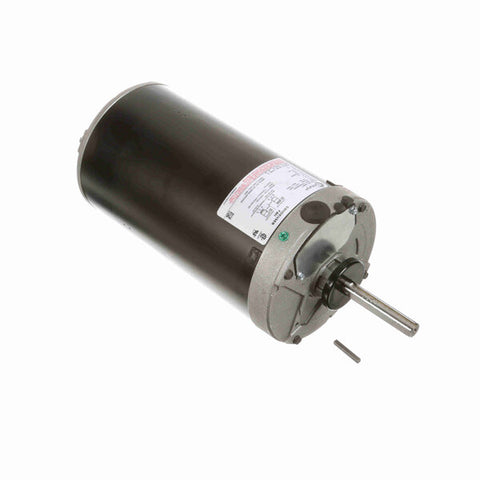

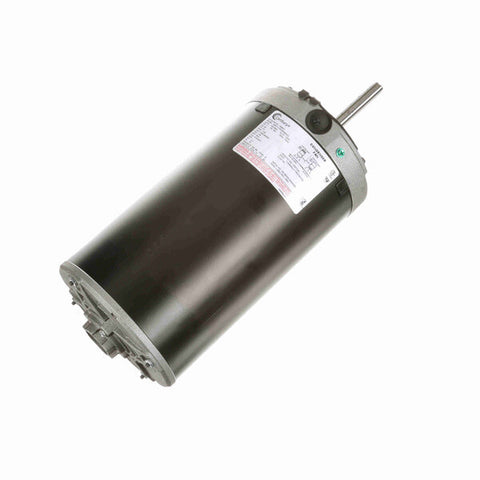

Century Condenser Fan Motor, 1140 RPM, 2 HP, 208-230/460 V, 56Y Frame, Totally Enclosed Air Over
- Double sealed ball bearings
- Automatic reset thermal protector
- Quick-connect design
- Reversible
- 3 Phase
- HM101-0091 replaces the following brands and item numbers: Used on many Carrier, York and McQuay rooftop units
$820.05 USD
PRODUCT INFO
Applications
Used on many Carrier, York and McQuay rooftop units
Features
Automatic thermal protection. Class B insulation. 70°C ambient. Double sealed ball bearings. Shaft with both keyway and flat. Rotation: reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674074928 |
| Output HP | 2.0 Hp |
| Frequency | 60 Hz |
| Current | 6.3-6.2/3.1 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 56Y |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-230/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | B |
| Enclosure | Totally Enclosed Air Over |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Three Phase |
| Poles | 6 |
| Mounting | Round |
| Opp Drive End Bearing | Ball |
| Shaft Type | Keyed |
| Frame Length | 10.25 in |
| Shaft Extension | 3.44 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 16.70 in |
| Shaft Diameter | 0.625 in |
