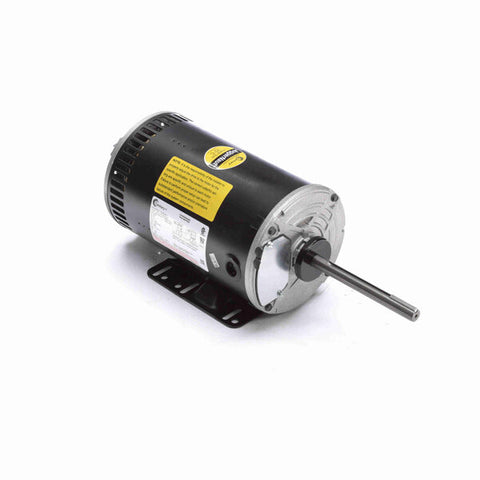

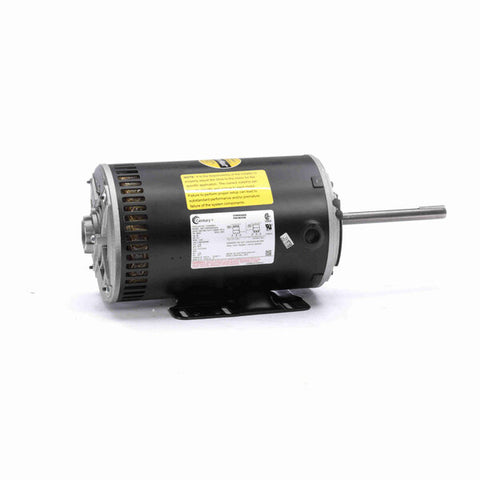

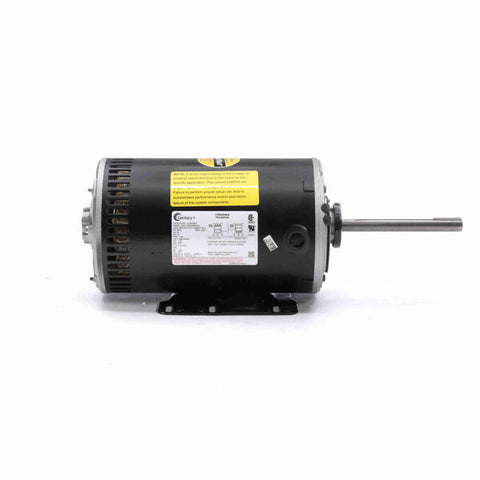

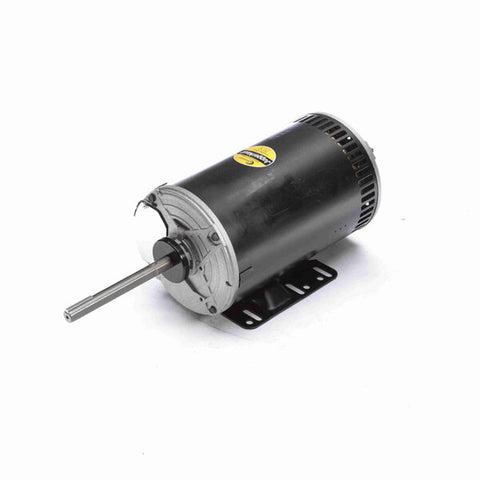

Century Condenser Fan Motor, 1140 RPM, 2.0 HP, 208-230/460 V, 56HZ Frame, Open Air Over
- Double sealed ball bearings
- Automatic reset thermal protector
- Quick-connect design
- Reversible
- 3 phase
$674.10 USD
PRODUCT INFO
Features
70°C (158° F) ambient temperature. Enclosed shaft end bracket with vented frame. Automatic reset thermal protector. External shaft slinger. A threaded lead exit. Voltage Change Device™ (VCD) to quickly change voltage on the spot. Double-sealed ball bearings. For commercial and residential fan/heat pump applications and may be installed outdoors
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674074072 |
| Output HP | 2.0 Hp |
| Frequency | 60 Hz |
| Current | 7.0-7.0/3.5 A |
| Service Factor | 1 |
| Duty | Continuous |
| Frame | 56HZ |
| Thermal Protection | Thermally Protected |
| UL | Recognized |
| Voltage | 208-2300/460 V |
| Speed | 1140 rpm |
| Phase | 3 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Three Phase |
| Poles | 6 |
| Mounting | Rigid base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Keyed |
| Frame Length | 9.65 in |
| Shaft Extension | 6 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 18.01 in |
| Shaft Diameter | 0.625 in |
