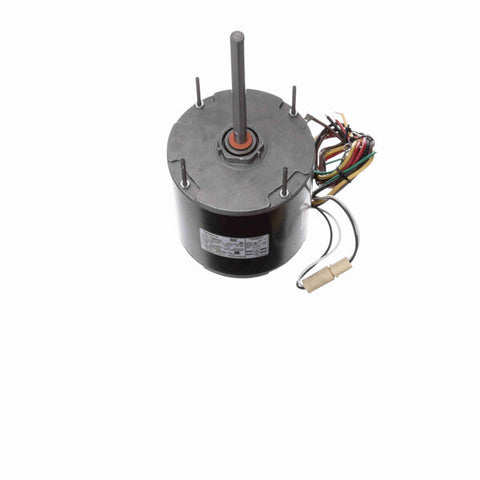

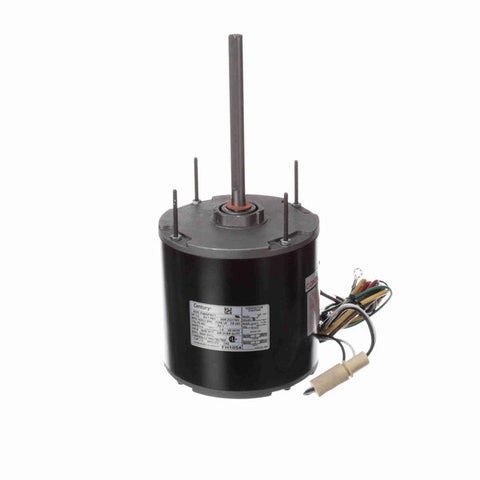

Century Condenser Fan Motor, 1625 RPM, 1/2 HP, 460 V, 48 Frame, Semi Enclosed
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed, Except Open Lead End End-Frame Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band
$474.60 USD
PRODUCT INFO
Applications
Horizontal or vertical shaft up applications
Features
Automatic thermal protection Short body design Electrically reversible
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021069 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 1.4 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48Y |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 460 V |
| Speed | 1625 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Semi Enclosed |
| Ambient Temperature | 60 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Ball |
| Shaft Type | Flat |
| Frame Length | 4.75 in |
| Shaft Extension | 6.4 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.24 in |
| Shaft Diameter | 0.500 in |
