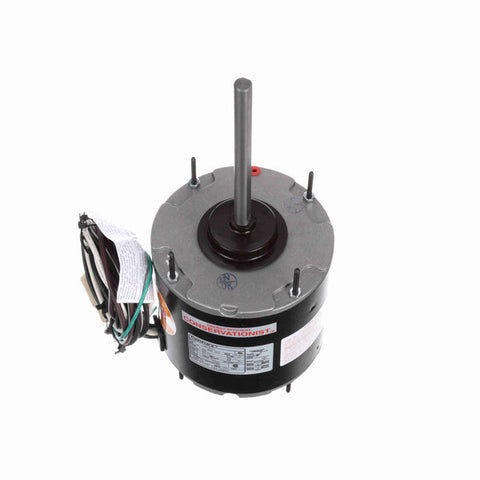

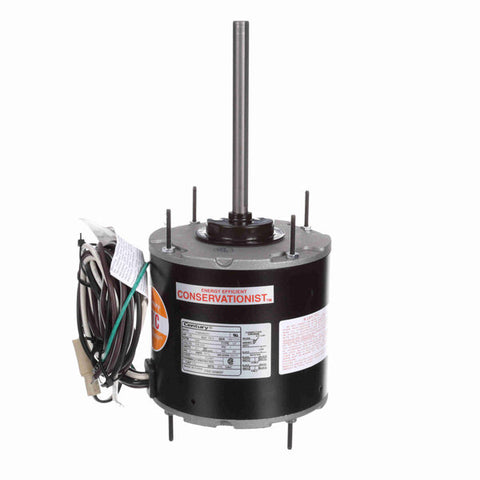

Century Condenser Fan Motor, 825 RPM, 1/3 HP, 200-230 V, 48 Frame, Totally Enclosed Air Over
- Condenser Fan - Heat Pump - Refrigeration Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- 36" Leads
- Extended Studs Shaft End and Lead End
- HM101-0015 replaces the following brands and item numbers: Carrier/Bryant and others
$303.45 USD
PRODUCT INFO
Applications
Replaces motors in units by Carrier/Bryant and others
Features
70°C ambient Three year warranty UL and CSA approved Class F insulation achieves superior dielectric strength for long thermal life Single-speed Sleeve or ball bearing Large high-temperature nylon glass-filled shaft slinger for bearing protection; keeps water and dirt out of motor bearings|36” color coded high temperature leads for easy identification and installation Easy to remove drain plugs in both end frames allow accumulated condensation to be expelled quickly
SPECIFICATIONS
| Nameplate Specifications | |
| UPC | 786674021502 |
| Output HP | 1/3 Hp |
| Frequency | 60 Hz |
| Current | 2.1 A |
| Service Factor | 1 |
| Duty | Air Over |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | Recognized |
| Voltage | 200-230 V |
| Speed | 825 rpm |
| Phase | 1 |
| Insulation Class | F |
| Enclosure | Totally Enclosed |
| Ambient Temperature | 70 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Permanent Split Capacitor |
| Poles | 8 |
| Mounting | Extended Studs |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Double Flat |
| Frame Length | 4.50 in |
| Shaft Extension | 6.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 12.49in |
| Shaft Diameter | 0.500 in |
