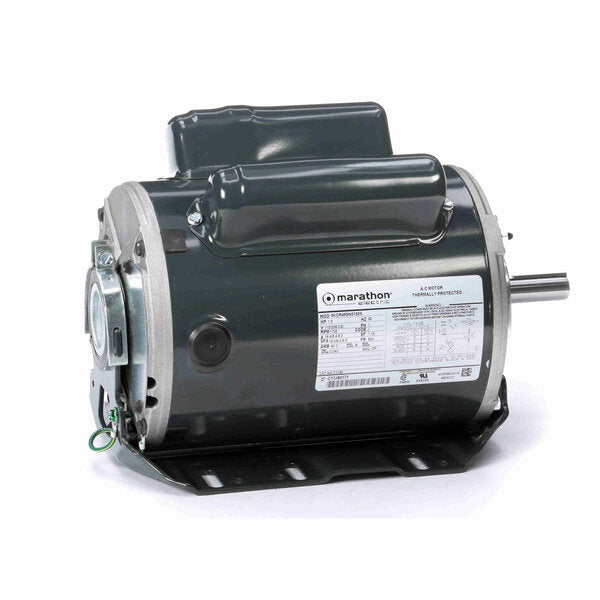

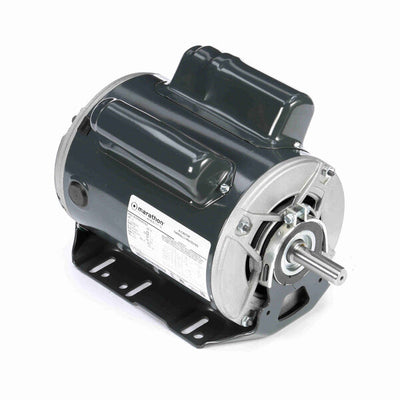

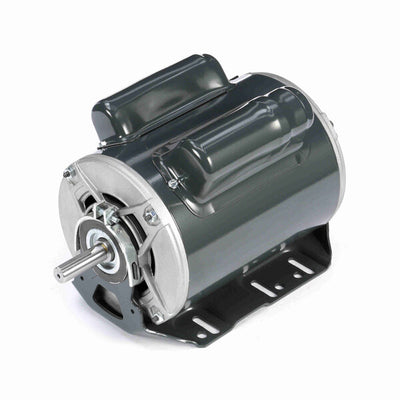

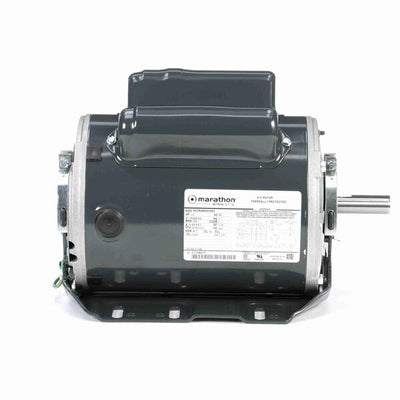

Marathon Belt Drive Motor, 1725 RPM, 1.5 HP, 115/208-230 V, 56H Frame, Open Drip Proof

Availability:
In-Stock
  • Heavy gauge steel frame and base
  • Ball bearings
  • Capacitor start/capacitor run design for reduced amperage
  • Energy saver design

$445.00 USD

Title
Buy Now
SKU:
C1160
ID:
HM109-1S9-0001

PRODUCT INFO

Applications
For use in residential and commercial fan and blowers applications where high starting torque is required

Features
Automatic reset overload protected.Continuous duty ball bearing motors designed for belt driven fans and blowers, roof ventilators and exhaust fans.60 Hz, permanently lubricated, open dripproof, 40°C ambient.Reversible rotation.Resilient base.Keyed 5/8" shaft except as noted.NEMA service factor

SPECIFICATIONS

Nameplate Specifications
UPC722856048462
Output HP1.5 Hp
Frequency60 Hz
Current16.4,8.4-8.2 A
Service Factor1.15
Efficiency
77 %
DutyContinuous
Frame56H
Thermal ProtectionAutomatic
ULRecognized
Voltage115/208-230 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureDrip Proof
Ambient Temperature40 °C
CSAYes
Technical Specifications

Electrical TypeCapacitor Start Capacitor Run
Poles4
MountingResilient Base
Opp Drive End BearingBall
Frame Length
7.68 in
Shaft Extension1.88 in
RotationCounterclockwise/Clockwise
Frame MaterialRolled Steel
Overall Length11.9 in
Shaft Diameter0.630 in
