Daikin 12,000 BTU 19.0 SEER Ductless Heat Pump 19-Series Wall Mounted Air Conditioning System


Rated Capacity: 10,900 BTU Cooling, 13,500 BTU Heating.
Product Includes

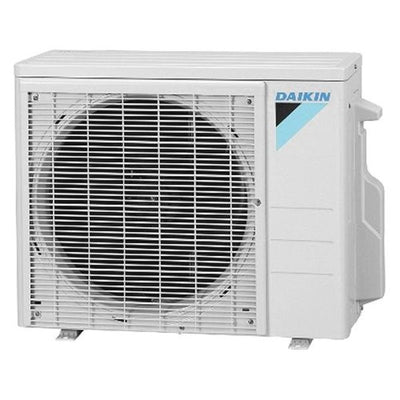

(1) Daikin - 12,000 BTU - 19 Series Outdoor Condenser - Single Zone Only (RX12NMVJU)

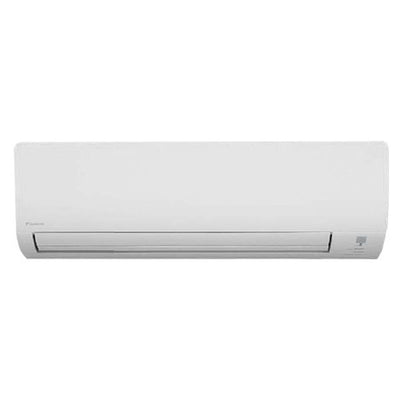

(1) Daikin 19 Series 12,000 BTU Wall Mounted Unit - For Single Zone (FTX12NMVJU)


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


The X12NMVJU is a wall mounted system perfect for all your single zone cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor air conditioning unit to provide cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.

This product requires the following accessories for installation:

  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground. Adding these accessories to your order will provide a complete, ready-to-install mini split system.



General Information
TypeWall Mounted
Product Line19-Series
Operating ModeHeating and Cooling
Number of Zones1
Refrigerant TypeR-410A
Indoor Unit Size(s)12
DOE Regional ComplianceNationwide
Line Set Size1/4" x 3/8"

Cooling BTU12000
Cooling Capacity10900 BTU
Heating Capacity13500 BTU
Cooling Power Input870 Watts
Heating Power Input1040 Watts
Low Ambient HeatingNo
Minimum Outdoor Temperature for Heating5 F
Minimum Outdoor Temperature for Cooling-4 F

ETL ListedYes
AHRI CertifiedYes
Energy Star ListedYes
ISO CertifiedYes
AHRI Reference Number8064266

Product Weight78 Pounds
Shipping Weight88 Pounds
