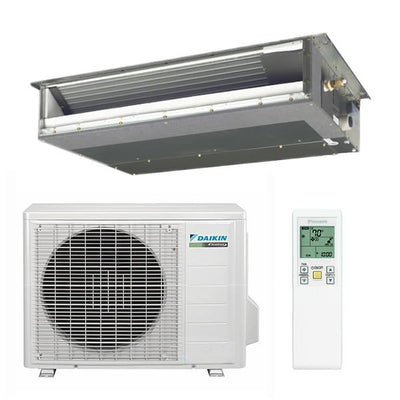

Daikin 9,000 BTU 15.1 SEER LV-Series Concealed Duct Heat Pump Air Conditioning System


Rated Capacity: 8,500 BTU Cooling, 10,000 BTU Heating.
Product Includes
(1) Daikin - 9,000 BTU - LV Series - Outdoor Condenser - Single Zone Only (RXS09LVJU)
(1) Daikin LV Series 9,000 BTU Concealed Duct Unit - For Single Zone (FDXS09LVJU)


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


The LV series of split systems packs a wide variety of premium features into a convenient, effective ductless system package. The concealed duct type of indoor unit allows the indoor unit to be hid behind a wall or other building feature, and an advanced filtration system ensures air quality within your home during all stages of operation. Unique circuitry design eliminates standby energy usage by up to 90 percent when compared to other mini split brands, and the included remote means you don't even have to get up from your chair to deliver comfort to your home.

This product requires the following accessories for installation:

  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.



General Information
TypeConcealed Duct
Product LineLV-Series
Operating ModeHeating and Cooling
Number of Zones1
Refrigerant TypeR-410A
Indoor Unit Size(s)9
DOE Regional ComplianceNationwide
Line Set Size1/4" x 3/8"

Cooling BTU9000
Cooling Capacity8500 BTU
Heating Capacity10000 BTU
Low Ambient HeatingNo
Minimum Outdoor Temperature for Heating5 F
Minimum Outdoor Temperature for Cooling50 F

ETL ListedYes
AHRI CertifiedYes

Product Weight139 Pounds
Shipping Weight143 Pounds
