Daikin 12,000 BTU 20.0 SEER Ductless Heat Pump 20-Series Wall Mounted Air Conditioning System


Rated Capacity: 10,900 BTU Cooling, 13,600 BTU Heating.
Product Includes

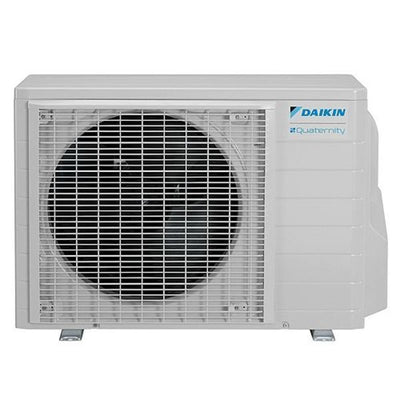

(1) Daikin - 12,000 BTU - 20 Series Outdoor Condenser - Single Zone Only (RXL12QMVJU)
(1) Daikin 20 Series 12,000 BTU Wall Mounted Unit - For Single Zone (FTX12NMVJU)


For pricing and to purchase this product:

Please register, login, or contact us for a quote request


The XL12QMVJU is a wall mounted system perfect for all your single zone heating and cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.

This product requires the following accessories for installation:

  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.



General Information
TypeWall Mounted
Product Line20-Series
Operating ModeHeating and Cooling
Number of Zones1
Refrigerant TypeR-410A
Indoor Unit Size(s)12
DOE Regional ComplianceNationwide
Line Set Size1/4" x 3/8"

Cooling BTU12000
Cooling Capacity10900 BTU
Heating Capacity13600 BTU
Cooling Power Input900 Watts
Heating Power Input1000 Watts
Low Ambient HeatingYes
Minimum Outdoor Temperature for Heating-13 F
Minimum Outdoor Temperature for Cooling-4 F

Energy Star ListedYes
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
AHRI Reference Number8849458

Product Weight88 Pounds
Shipping Weight98 Pounds
