Daikin 12,000 BTU 24.2 SEER Ductless Heat Pump Wall Mounted Air Conditioning System
Rated Capacity: 12,000 BTU Cooling, 16,000 BTU Heating.
Product Includes

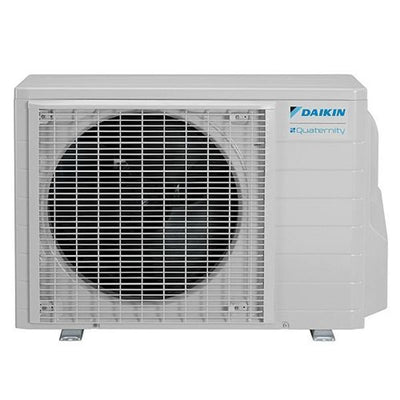

(1) Daikin - 12,000 BTU - Outdoor Condenser - Single Zone Only (RXG12HVJU)

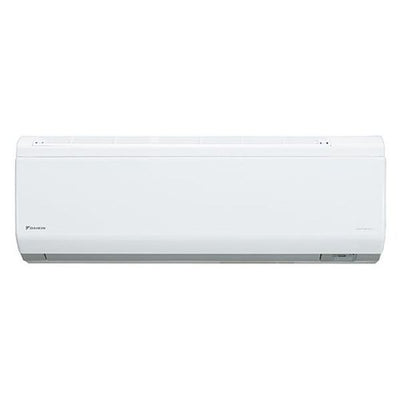

(1) Daikin 12,000 BTU Wall Mounted Unit - For Single Zone (FTXG12HVJU)
SKU:
RXG12HVJU; FTXG12HVJU
ID:
HE103-1009; HE103-2009
PRODUCT INFO
Inverter technology is used to bring this XG12HVJU system's SEER rating up to an astounding 24.2, among the highest on the market for a system of this size. "Flash Streamer Technology" brings an effective four stage filtration system to the air in your home, almost entirely eliminating airborne debris and pathogens. A more accurate dehumidification system and "Intelligent Eye" motion sensing technology makes the XG12HVJU worthy of a spot in any efficient home.
This product requires the following accessories for installation:
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.
SPECIFICATIONS
General Information | |
Type | Wall Mounted |
Operating Mode | Heating and Cooling |
Number of Zones | 1 |
Refrigerant Type | R-410A |
Indoor Unit Size(s) | 12 |
DOE Regional Compliance | Nationwide |
Line Set Size | 1/4" x 3/8" |
Performance | |
Cooling BTU | 12000 |
Cooling Capacity | 12000 BTU |
Heating Capacity | 16000 BTU |
SEER | 24.2 |
HSPF | 10.5 |
Low Ambient Heating | Yes |
Minimum Outdoor Temperature for Heating | -4 F |
Minimum Outdoor Temperature for Cooling | 14 F |
Certifications | |
ETL Listed | Yes |
AHRI Certified | Yes |
Dimensions | |
Product Weight | 130 Pounds |
Shipping Weight | 134 Pounds |
