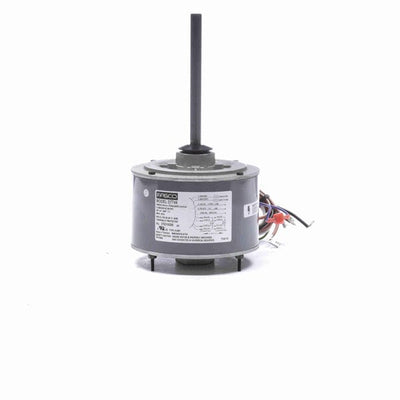

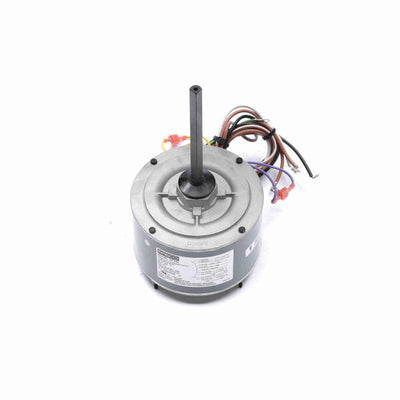

Fasco Condenser Fan Motor, 1075 RPM, 1/4 HP, 208-230 V, 48 Frame, Open Drip Proof

Availability:
In-Stock
  • Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Lead End, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Lead End, Belly Ba

$83.00 USD

Title
Buy Now
SKU:
D7749
ID:
HM101-0109

PRODUCT INFO

Applications
Used for vertical or horizontal shaft applications where the motor is located in the airstream

Features
Automatic thermal protection. 208-230V. Capacitor not included

SPECIFICATIONS

Nameplate Specifications
UPC818508020181
Output HP1/4 Hp
Frequency60 Hz
Current2.7 A
Service Factor1
DutyContinuous
Frame48
Thermal ProtectionAutomatic
ULRecognized
Voltage208-230 V
Speed1075 rpm
Phase1
Insulation ClassB
EnclosureOpen Drip Proof
Ambient Temperature60 °C
CSAY


Technical Specifications

Electrical TypePermanent Split Capacitor
Poles6
MountingExtended Studs
Opp Drive End BearingBall
Shaft TypeDouble Flat
Frame Length3.74 in
Shaft Extension6.5 in
RotationReversible
Frame MaterialRolled Steel
Shaft Diameter0.500 in
