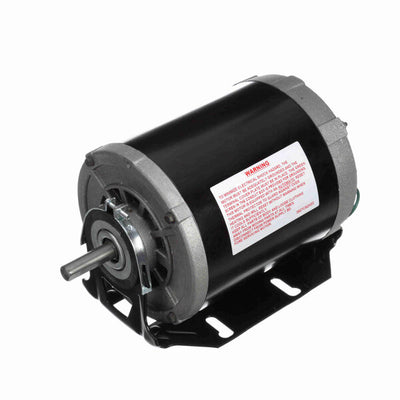

Marathon Belt Drive Motor, 1725 RPM, 1/2 HP, 115 V, 48 Frame, Open Drip Proof
- Resilient Base
- Continuous duty
- Single and two speed
$266.00 USD
PRODUCT INFO
Applications
For Belt Driven Fan and Furnace Blowers
Features
48 frame motor mounted on 48/56 frame base and supplied with 5/8" split steel shaft bushing. Automatic reset thermal protection. Continuous duty. 60 Hz. Single-phase. 40°C ambient. Sleeve bearing. Resilient mount. Rotation easily reversed by electrical reconnection. Not recommended where automatic reset creates a hazard
SPECIFICATIONS

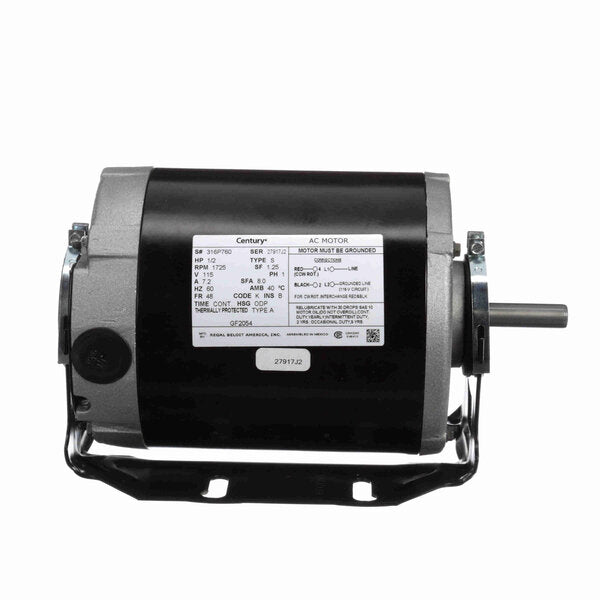

| Nameplate Specifications | |
| UPC | 786674021830 |
| Output HP | 1/2 Hp |
| Frequency | 60 Hz |
| Current | 7.2 A |
| Service Factor | 1.25 |
| Duty | Continuous |
| Frame | 48 |
| Thermal Protection | Automatic |
| UL | No |
| Voltage | 115 V |
| Speed | 1725 rpm |
| Phase | 1 |
| Insulation Class | B |
| Enclosure | Open Drip Proof |
| Ambient Temperature | 40 °C |
| CSA | Y |
| Technical Specifications | |
| Electrical Type | Split Phase |
| Poles | 4 |
| Mounting | Resilient Base |
| Opp Drive End Bearing | Sleeve |
| Shaft Type | Keyed |
| Frame Length | 5.44 in |
| Shaft Extension | 1.5 in |
| Rotation | Reversible |
| Frame Material | Rolled Steel |
| Overall Length | 8.90 in |
| Shaft Diameter | 0.625 in |
