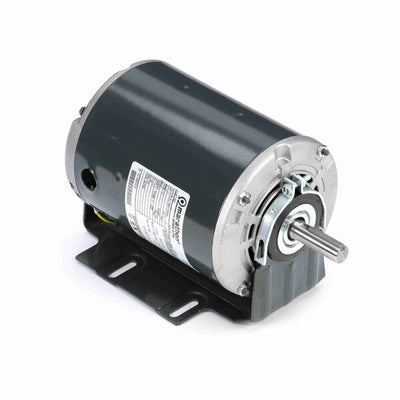

Marathon Belt Drive Motor, 1725 RPM, 1/2 HP, 115 V, 56 Frame, Open Drip Proof

Availability:
In-Stock
  • Ball bearings
  • Heavy gauge steel frame and base

$368.00 USD

Title
Buy Now
SKU:
D149
ID:
HM109-1S9-0013

PRODUCT INFO

Features
Automatic thermal protection. Low starting amps. Resilient mounting furnished. 40°C ambient. Continuous duty. Reversible rotation. High Service Factors. 60 Hz. Class A insulation. Not recommended where automatic reset creates a hazard

SPECIFICATIONS

Nameplate Specifications
UPC722856039927
Output HP1/2 Hp
Frequency60 Hz
Current7.2 A
Service Factor1.25
DutyContinuous
Frame56
Thermal ProtectionAutomatic
ULRecognized
Voltage115 V
Speed1725 rpm
Phase1
Insulation ClassB
EnclosureOpen Drip Proof
Ambient Temperature40 °C
CSAY
Technical Specifications

Electrical TypeSplit Phase
Poles4
MountingResilient Base
Opp Drive End BearingBall
Shaft TypeT
Frame Length6.50 in
Shaft Extension1.97 in
RotationSelective Counterclockwise
Frame MaterialRolled Steel
Overall Length10.47 in
Shaft Diameter0.625 in
